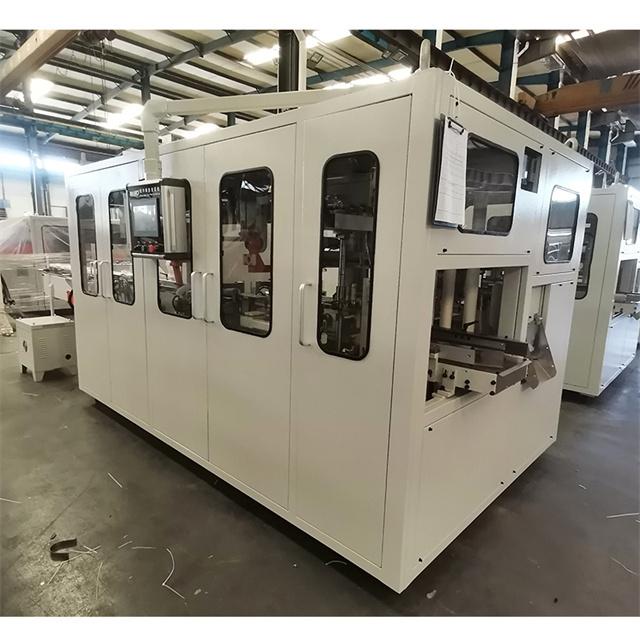

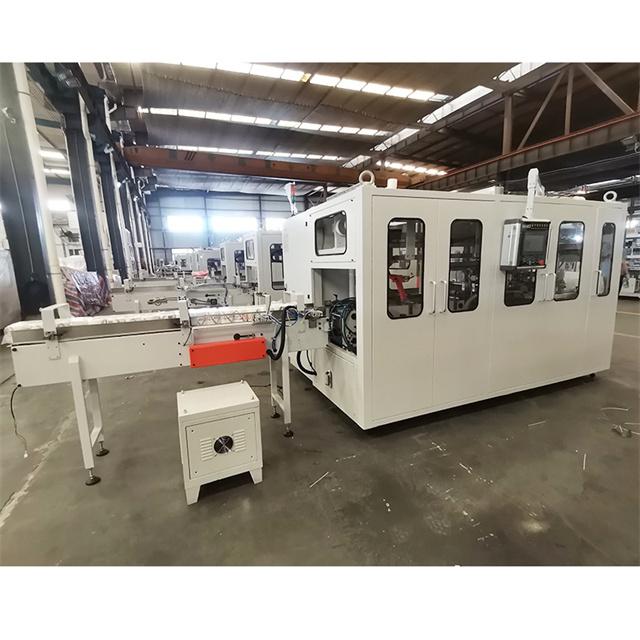

TP-B30R Automatic Single Roll Tissue Paper Bundle Packing Machine

Price: Negotiable
Model Number: TP-B30R
Power: 20.2KW
Application: single packed/unpack core/coreless roll paper
Weight: 3400KG
Output: 22Pack/min
Packaging dimension: L(170-660) /W(180-260) /H(85-170)MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

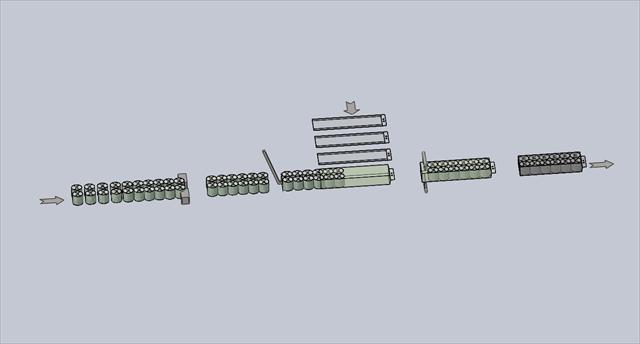

★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operation and maintenance.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

★Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

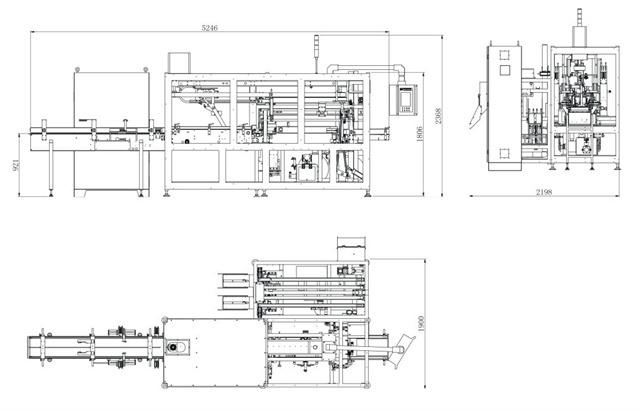

TP-B30R main parameter configuration
Specification/Model/ ltem	TP-B30RV、TP-B30RM
Scope of application	Single core/coreless roll paper
Feeding type	ASF automatic double lanes intelligent feeding system	Exclude standing device
Design speed	25 packs/min	relate to product size
Stable speed	15-22 packs/min	relate to product size
Packaging film install structure	Dual bag racks
Gusset type	Vacuum mould
Scrap cut off mode	Insert & cut teeth share

Bag storage QTY	600 pre-bag	Can customize if size exceed
Machine weight(KG)	3400
Bag material	PE film	Thickness 0.05mm

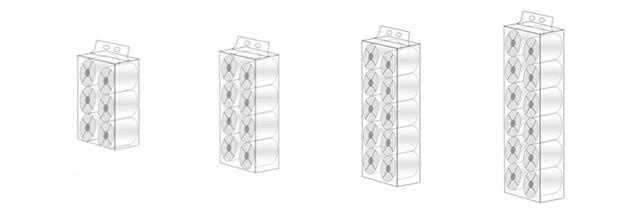

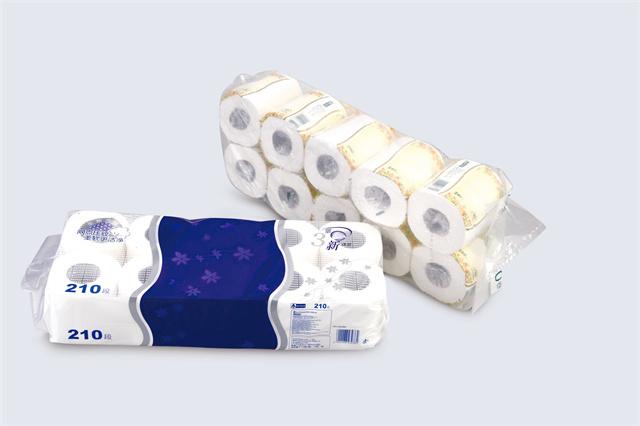

Packing style(mm)	①L90-170 D.90-105	Suitable for corel coreless roll paper
	2x3、 2x4、2x5、2x6
	②L85-170 D.90-130
	2x3、2x4、2x5
Air compression(MPA)	Pressure 0.6 Flow 300Lmin	Buyer provide
Bag type	Pre-bag	Air hole≥2.5mm

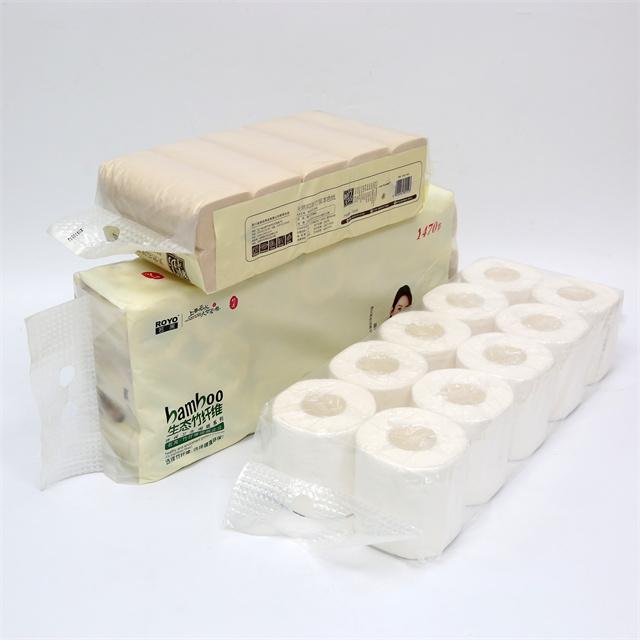

TP-B30R series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.

Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30R 1.jpg

Products Categories

Related Products

More》

Tissue Packing Machine Tissue Paper Packing Machine Tissue Paper Bundle Packing Machine

TP-B30R Automatic Single Roll Tissue Paper Bundle Packing MachineMain Parts

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.

Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
