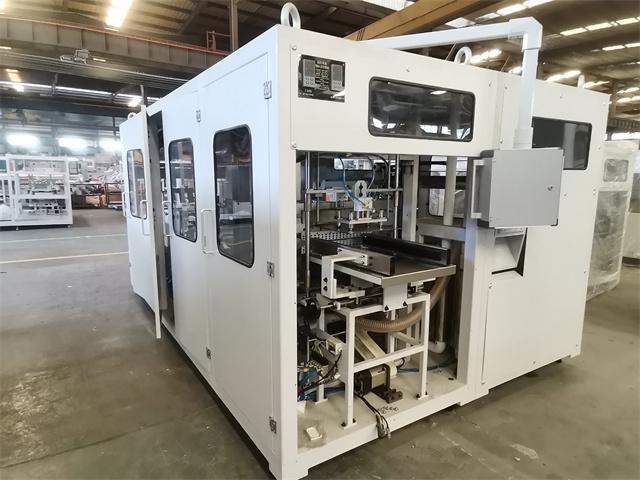

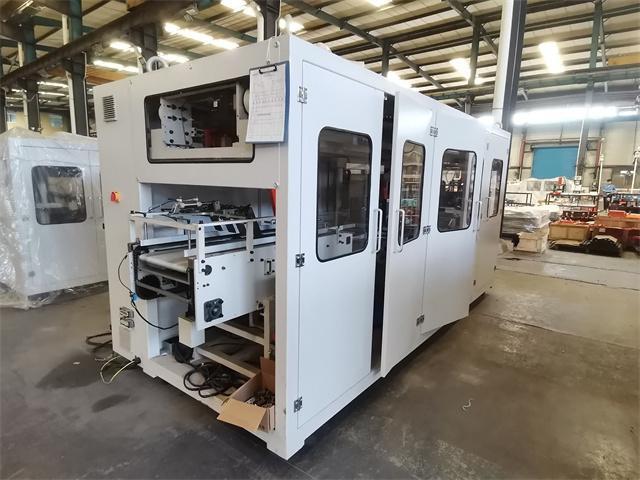

TP-B30RE toilet paper machine

Price: Negotiable
Model Number: TP-B30RE
Power: 25KW
Application: Single Packed/Unpack Core/Coreless Roll Paper
Weight: 3400KG
Output: 22 Pack/Min
Packaging dimension: Length (L): 300-690 Width (W): 160-440 Height (H): 80-280 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote



toilet paper machine


TP-B30RE main parameter configuration

Specification\Model\

ltem

TP-B30REV、TP-B30REM

Scope of Application

Core、coreless roll paper

Feeding type

ASF auto double lanes feeding system

Design speed

22 packs/min

Stable speed

20packs/min(relate to product size)

Gusset type

Vacuum forming mould

Cut off modo

lnsert & cut

Bag storage structure

Dual bag racks

Bag storage qty

600 bags

Bag material

PE film

Compressed air(MAP)

Pressure O.6MPA Flow 30l/min

Power supply

380V/50HZ

Total motor power(KW)

19

Machine weight (KG)

3400

Bag type

premade bag

Servo control shaft nos

10

Electrical control system

VEICHI,MITSUBISHI

Temp.system

YUDILAN

Pneumatic system

SMC.AlRTAC

Optional device

lnk code printer.thermos transfer printer




Toilet paper is an essential item in our daily lives, and it's hard to imagine a world without it. Have you ever wondered how toilet paper is made and where it comes from? Well, in this article, we're going to explore the fascinating world of toilet paper machines and how they have transformed the manufacturing process of this everyday product.

The History of Toilet Paper Machines

The first toilet paper machine was invented in 1880 by the two brothers, Clarence and E. Irvin Scott. Before the invention of the toilet paper machine, toilet paper was made by hand, which was a time-consuming and expensive process. The Scott brothers' invention revolutionized the toilet paper industry by making it possible to produce large quantities of toilet paper more efficiently and at a lower cost.

How a Toilet Paper Machine Works

A toilet paper machine is a complex piece of machinery that involves several processes to transform pulp into the final product. First, raw materials such as wood chips or recycled paper are dissolved in water to create a pulp. Then, the pulp is washed, refined, and bleached to create a clean, white pulp. Next, the pulp is fed into the paper machine, where it goes through several rollers, drying cylinders, and other equipment to create a continuous sheet of paper. Finally, the paper is cut into the desired size and packaged for distribution.

The Advancements in Toilet Paper Machines

Over the years, toilet paper machines have undergone several advancements to improve their efficiency and productivity. One of the major developments has been the move towards automation, which has reduced the need for human labor and increased the speed of production. Another advancement has been the implementation of computer-controlled systems that monitor the entire production process and make adjustments to ensure consistent quality. These advancements have helped manufacturers to produce toilet paper more efficiently and at a lower cost while ensuring a consistent, high-quality product.

In conclusion, toilet paper machines have played a significant role in revolutionizing the toilet paper industry. From the invention of the first machine in the 1880s to the advancements of modern-day machines, these machines have transformed the way toilet paper is produced and made it accessible to everyone. Today, we take toilet paper for granted, but it's important to acknowledge the innovations that have made this everyday product a reality.

TP-B30RE series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.




Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.
TP-B30RE 4.jpg
TP-B30RE toilet paper machineMain Parts
Electric motors

Electric motors

The electric motors used in toilet roll packing machines are typically selected based on the specific requirements of the machine. Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.
Film-cutting knife holder

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
Film Frame

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.
Film Dragging Rollers

Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow
TP-B30RE toilet paper machineRelated Quality Control
BOM Check
BOM Check
During our production process, operators will check the bill of materials to find and test the right parts. Ensure the structure and function of TP-B30RE toilet paper machine meet the requirements.
Certification
Certification
Imako obtain certifications from independent organizations to ensure that their products meet industry standards and regulatory.
Performance testing
Performance testing
We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.

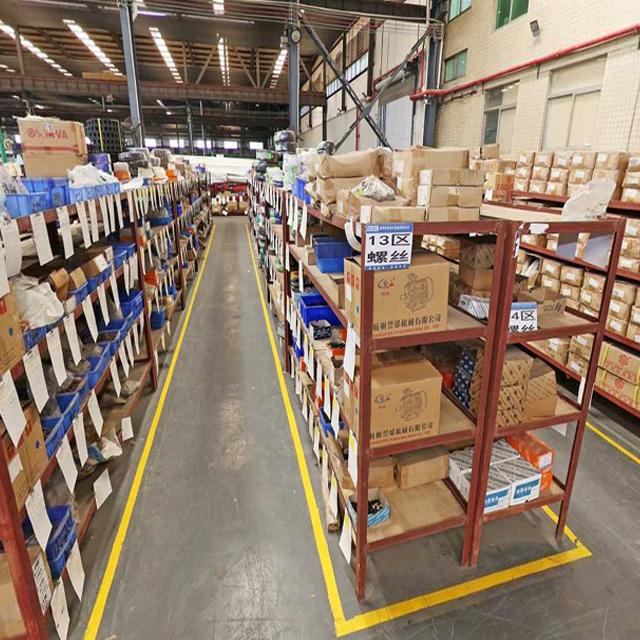

Parts Storage Management
Parts Storage Management
we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.
