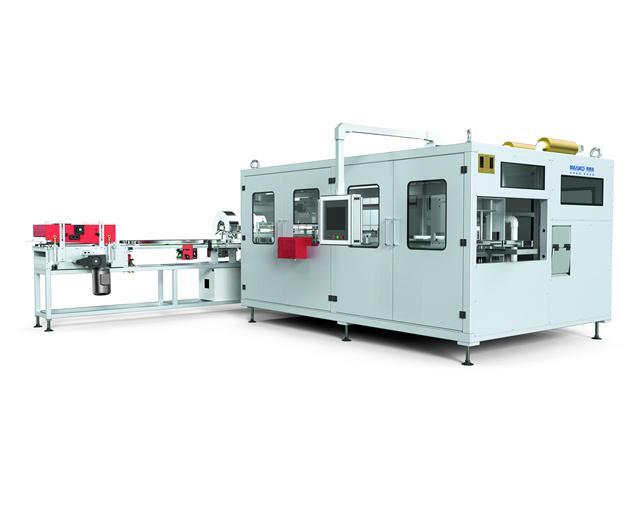

Name: TP-B30RE toilet paper making machine Manufacturers
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Toilet Paper Rolls Packing Machine >

TP-B30RE toilet paper making machine Manufacturers

Price: Negotiable
Model Number: TP-B30RE
Power: 25KW
Application: Single Packed/Unpack Core/Coreless Roll Paper
Weight: 3400KG
Output: 22 Pack/Min

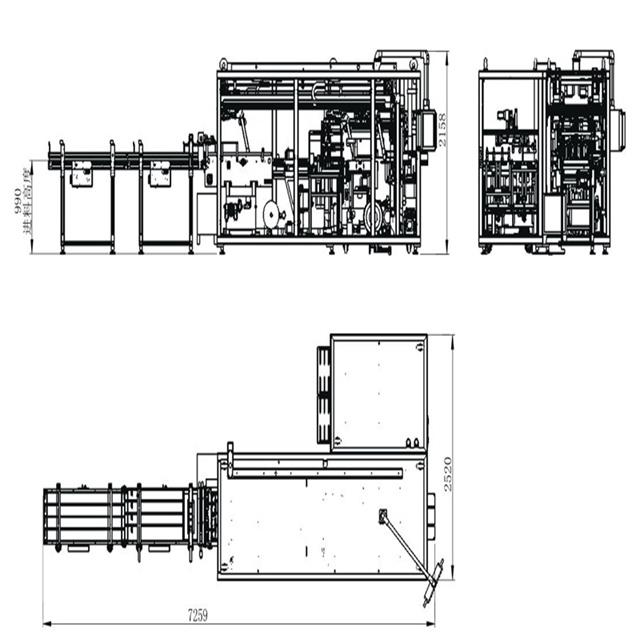

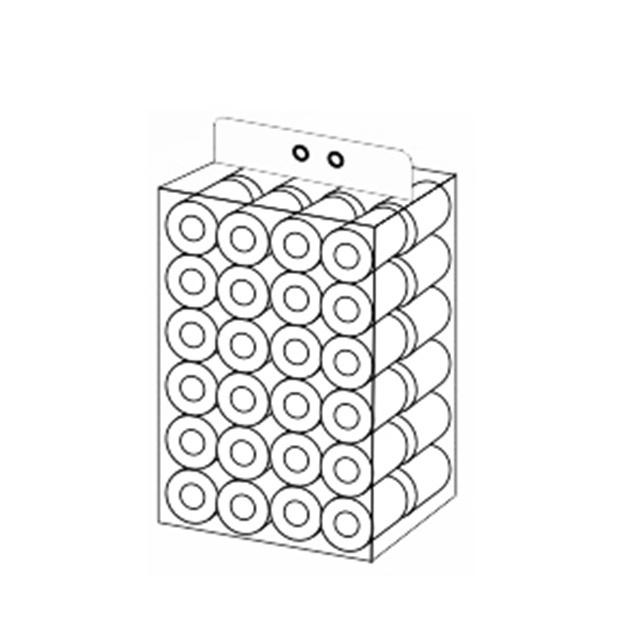

Packaging dimension: Length (L): 300-690 Width (W): 160-440 Height (H): 80-280 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

TP-B30RE main parameter configuration
Specification\Model\ ltem	TP-B30REV、TP-B30REM
Scope of Application	Core、coreless roll paper
Feeding type	ASF auto double lanes feeding system
Design speed	22 packs/min
Stable speed	20packs/min(relate to product size)
Gusset type	Vacuum forming mould
Cut off modo	lnsert & cut
Bag storage structure	Dual bag racks
Bag storage qty	600 bags
Bag material	PE film
Compressed air(MAP)	Pressure O.6MPA Flow 30l/min
Power supply	380V/50HZ
Total motor power(KW)	19
Machine weight (KG)	3400
Bag type	premade bag
Servo control shaft nos	10
Electrical control system	VEICHI,MITSUBISHI
Temp.system	YUDILAN
Pneumatic system	SMC.AlRTAC
Optional device	lnk code printer.thermos transfer printer


When it comes to personal hygiene products, one item we cannot do without is toilet paper. The invention of the toilet paper making machine revolutionized the production of this product, making it more efficient and cost-effective. In this article, we will explore the history and functionality of the toilet paper making machine.

The First Toilet Paper Making Machine

Before the invention of the toilet paper making machine, people relied on natural resources such as leaves or rags to clean themselves after using the bathroom. However, in 1857, Joseph Gayetty introduced the first commercialized toilet paper in the United States. It wasn't until 1871 that the first continuous roll toilet paper machine was patented by Seth Wheeler. This machine used a variety of materials, including wood pulp, to produce a continuous sheet of toilet paper.

The Modern Toilet Paper Making Machine

Today, toilet paper making machines are much more advanced and efficient than their early counterparts. These machines use a combination of high-tech electronics and mechanical components to produce a high-quality product at a rapid pace. From raw material input to finished product output, the entire process is automated, minimizing the need for human intervention and reducing the risk of errors.

The Benefits of a Toilet Paper Making Machine

There are many benefits to using a toilet paper making machine. For one, it allows for the production of large quantities of toilet paper in a short amount of time. This makes it ideal for both commercial and residential use. Additionally, the use of a toilet paper making machine ensures the consistency and quality of the product, which is important for customer satisfaction. Furthermore, by automating the production process, toilet paper making machines reduce labor costs, leading to lower product prices for end consumers.

In conclusion, the toilet paper making machine plays a critical role in the production of this essential hygiene product. From its humble beginnings to its current state-of-the-art technology, the toilet paper making machine has come a long way. Its benefits extend beyond just production efficiency, as it ultimately helps maintain our personal hygiene and health.

Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

Products Categories

Related Products

More》

toilet paper making machine toilet paper machine

TP-B30RE toilet paper making machine ManufacturersMain Parts

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.

Electric motors

The electric motors used in toilet roll packing machines are typically selected based on the specific requirements of the machine. Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.

TP-B30RE toilet paper making machine ManufacturersRelated Quality Control

Quality control checks

We perform regular quality control checks to ensure that TP-B30RE toilet paper making machine Manufacturers meets the required standards. This includes testing for functionality, safety, and user experience.

Parts Storage Management

we use a efficient systems to help visualize the process, making the process of purchasing, checking, warehousing and using of raw materials efficient and transparent.

Design and engineering

Imako have a team of experienced engineers and designers who use the latest 3D modeling software to design and test the TP-B30RE toilet paper making machine Manufacturers before they are built.
