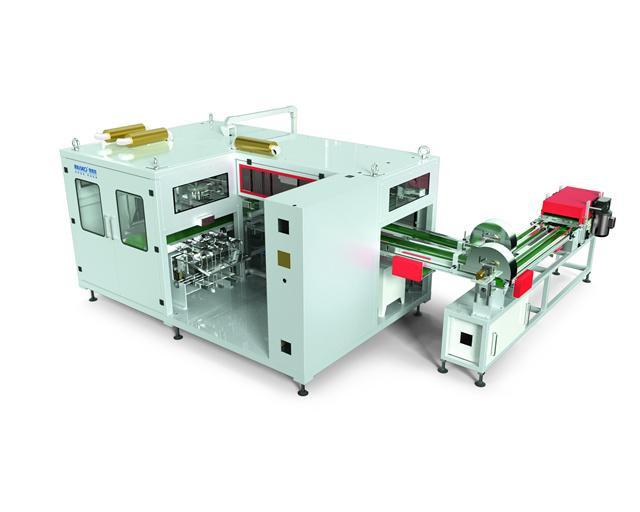

TP-R220 toilet paper manufacturing machine

Price: Negotiable
Model Number: TP-R220
Power: 15.2KW,380V/60Hz
Application: Single core and coreless toilet paper rolls
Weight: 1800KG
Output: 200 Packs/Min
Packaging dimension: Length (L): 80-220 Diameter(D) 80-130 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote
Main performance and structure features
1. Double transducer control, easy maintained, decreasing abrasion with long life.

2. human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking AND digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.


TP-R220 main parameter configuration

Design packing speed

220packs/min

Stable packing speed

≤200 pack/min

relate to product size

Maximum flm width(mm)

430

Cutter configuration

Double cutters

Film install structure

Air shaft

Machine weight(KG)

1800

Machine noise(db)

≤78dB

Percentage of pass

≥97%

Efficiency

≥85%

Power supply

380V/60Hz

Packaging film material

BOPPSpp

Film thickness

0.018-0.03



Manufacturing toilet paper is a booming business around the world. The toilet paper manufacturing machine has become an essential tool in this process. This machine produces high-quality toilet paper in various sizes and textures, making it a popular choice for commercial and residential use. In this article, we will explore the various features and benefits of the toilet paper manufacturing machine.

toilet paper machine

Suitable for packing roll paper, such as roll tissue, code applying paper and cash register paper etc.




Max. Work Speed:

200Pack/min

Total Power:

12KW

Pack Range(mm):

Length (L): 80-220

Diameter (D): 80-130





High Efficiency

The toilet paper manufacturing machine is designed for high-speed and efficient production. It can produce large quantities of toilet paper rolls in a relatively short amount of time, making it a highly profitable investment for any business. This machine is specially designed to handle large volumes of paper without causing any damage to the final product. With its advanced technology, the toilet paper manufacturing machine can produce high-quality toilet paper rolls, meeting the demands of customers worldwide.

Customizable Settings

The toilet paper manufacturing machine is designed to meet the unique needs of different customers. It comes with customizable settings that allow users to adjust the roll size, texture, and other specifications according to their requirements. This flexibility enables businesses to cater to a wide range of customers, thus increasing their profits. Moreover, the machine's modular design allows for easy maintenance and upgrades, ensuring that it remains in top-notch condition for years to come.

Environmentally-Friendly Operations

The toilet paper manufacturing machine is environment-friendly as it uses recycled paper as raw material. This not only reduces waste but also conserves energy, making it a sustainable option for businesses. Additionally, the machine's advanced technology reduces energy consumption, further reducing its carbon footprint. With increasing global concerns about the environment, using such machines helps businesses make a positive impact on the planet.

In conclusion, the toilet paper manufacturing machine is a vital tool for any business that wants to produce high-quality toilet paper efficiently, sustainably, and profitably. With its advanced technology, customizable settings, and environmentally-friendly operations, it is no surprise that the demand for this machine continues to grow worldwide.

General function

Link conveyor system, auto monitor in feed rolls flow, machine auto-stop for limited rolls, rolls auto arrange and feed function, auto stop for abnormal operation and no facial tissue condition, auto alarm and stop for no film, film cutting position electronic auto adjust function, auto-memory and keep parameters function,  main machine jog and separated action function, side-sealing part separated action function, whole machine linkage and emergency stop function, whole machine cycle stop and auto display defaults function.

downLoadImg (1).png

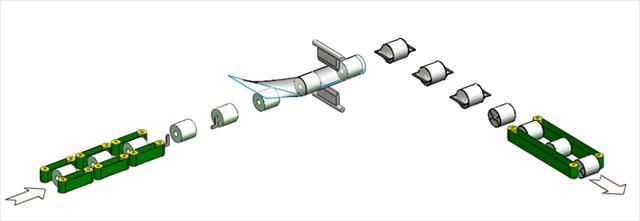

packing procedure.png

TP-R220 toilet paper manufacturing machineMain Parts
Speed Reducer

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.
Film-cutting knife holder

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
Electric motors

Electric motors

The electric motors used in toilet roll packing machines are typically selected based on the specific requirements of the machine. Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.
Conveyor Timing Belt

Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.
TP-R220 toilet paper manufacturing machineRelated Quality Control
Quality control checks
Quality control checks
We perform regular quality control checks to ensure that TP-R220 toilet paper manufacturing machine meets the required standards. This includes testing for functionality, safety, and user experience.
Material inspection
Material inspection
Imako use high-quality materials to build TP-R220 toilet paper manufacturing machine, and they inspect each component to ensure that it meets the required standards.
Certification
Certification
Imako obtain certifications from independent organizations to ensure that their products meet industry standards and regulatory.
Debugging and Testing
Debugging and Testing
After the completion of the machine, it needs to be debugged and tested to ensure that the performance of the equipment meets the requirements and operates normally before it can be packaged and distributed, and then leave the factory.
