TP-B40TZ Series Automatic Tissue Paper Towel Napkin Bundle Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B40TZ
Power: 18KW
Application: auto length wise direction bundle packing single soft packed facial tissue, hand towel paper napkin
Weight: 4800KG
Output: 30Pack/min
Packaging dimension: Length (L): 180-450 Width (W): 130-420 Height (H): 90-160 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★ Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying, bag opening and seal parts, This machine is easy to operation and maintenance.

★ Adopts central vacuum management mode, can efficiency lower power consumption.

★ Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

TP-B40TZ main parameter configuration
Specification/Model /item	TP-B40TZM、TP-B40TZV
Scope of application	Single pack tissue bundle packing
Feeding type	Length wise direction feeding

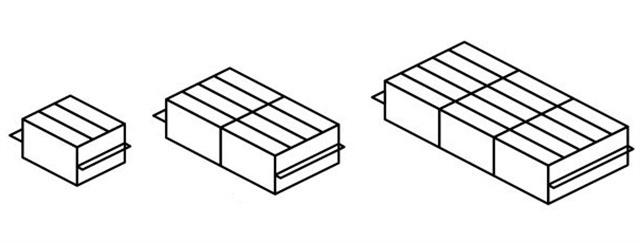

Packing style	1x3,1x4,1x5,1x6 2x3,2x4,2x5,2x6 3x3,3x4,3x5,3x6
Packing style	1x3,1x4,1x5,1x6 2x3,2x4,2x5,2x6 3x3,3x4,3x5,3x6
Bag install mode	Dual bag racks
Bag storage quantity	≤600 bags
Machine weight(KG)	4800

Bag Type	Premade bag with holes
Compressed air(MPA)	Pressure≥0.6，air low≥30L/min
Power supply	380V/50Hz
Servo control shaft nos	9
Electrical control system	VEICHI,MITSUBUSHI
Temp. control system	YUDIAN
Pneumatic control system	SMC/AIRTAC
Optional device	lnk code printer, thermos transfer code printer, code spray printer

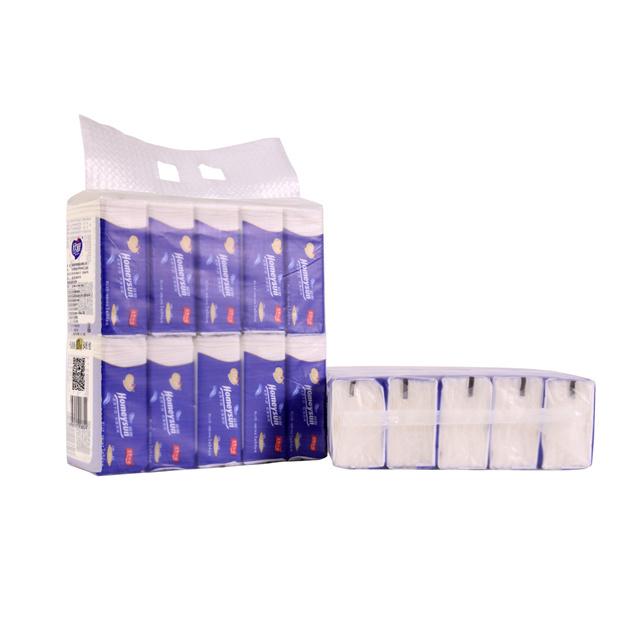

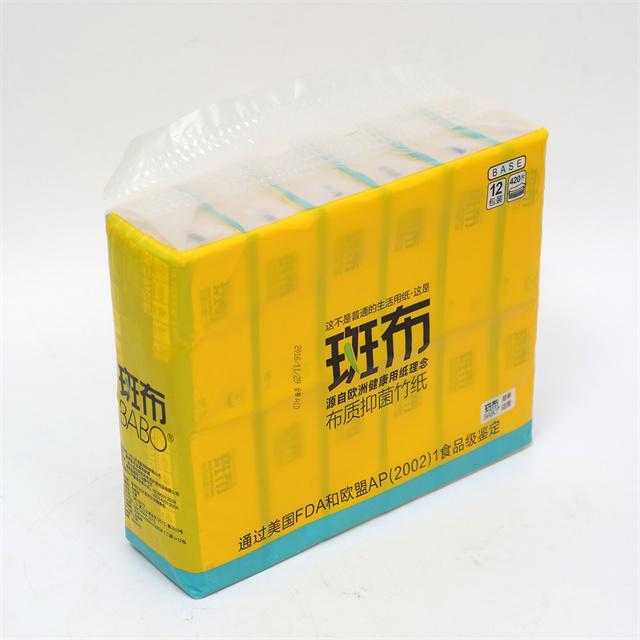

TP-B40TZ series automatic tissue paper bundle packing machine is suitable for auto length wise direction bundle packing single soft packed facial tissue, hand towel paper napkin.

Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

Products Categories

Related Products

More》

Tissue Paper Bundle Packing Machine Towel Paper Bundle Packing Machine Tissue Paper Wrapper

TP-B40TZ Series Automatic Tissue Paper Towel Napkin Bundle Packing MachineMain Parts

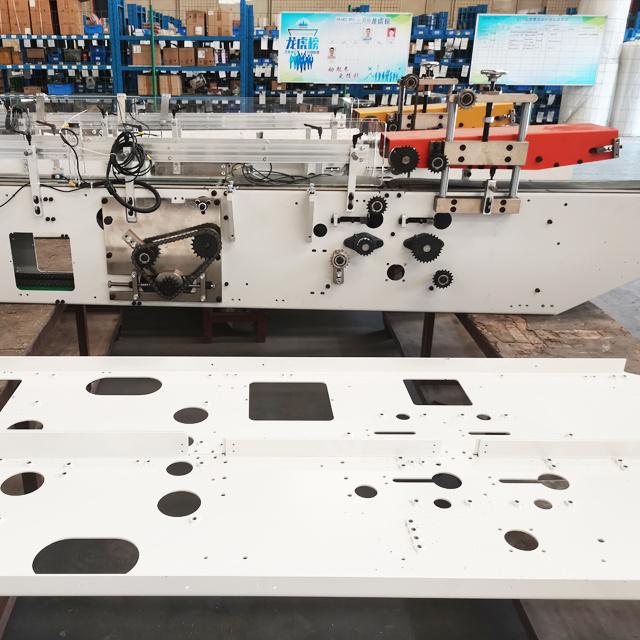

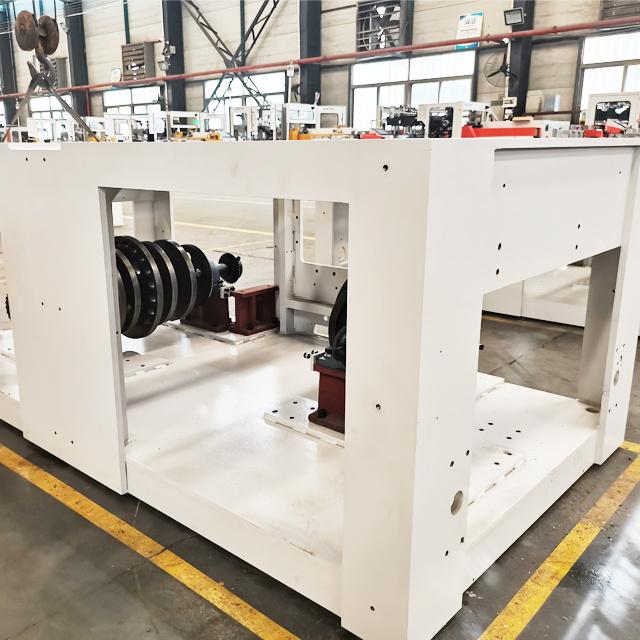

1. Machine Base

The structure of the base determines the stability of the whole machine .

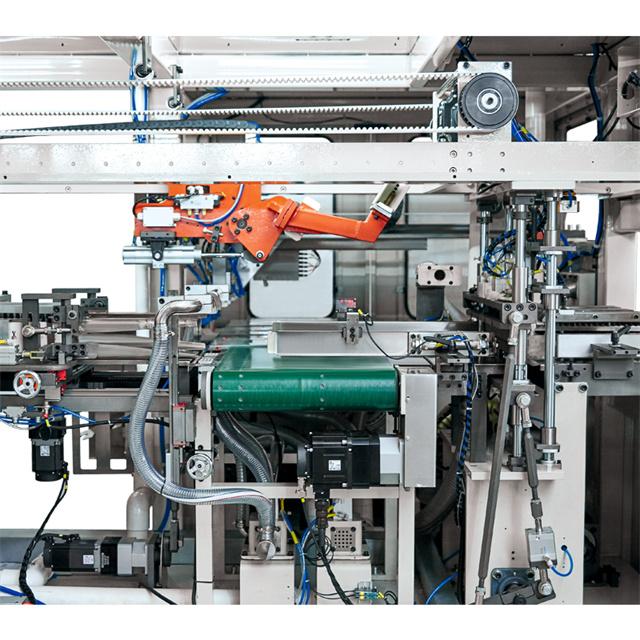

2. Feeding conveyor

Simple and reliable structure, reasonable transmission design.

3. Control panel unit

Protects the touch screen for easy use and operation by the operator.

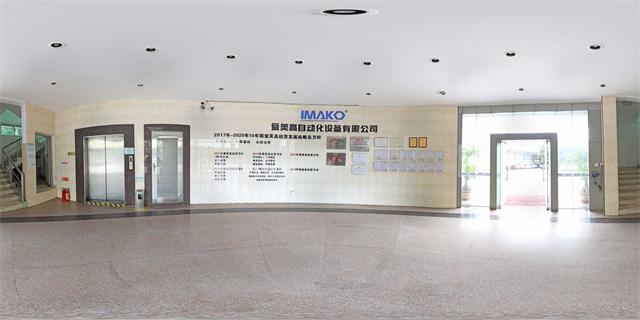

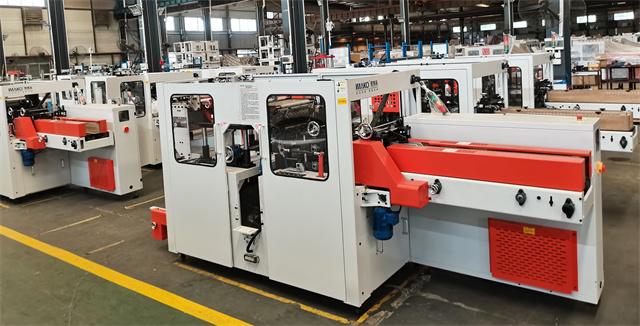

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.

Customization

Imako are able to offer customized solutions to their customers, tailoring the TP-B40TZ Series Automatic Tissue Paper Towel Napkin Bundle Packing Machine to meet the specific needs and requirements of each business.

Increased productivity

TP-B40TZ Series Automatic Tissue Paper Towel Napkin Bundle Packing Machine are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-B40TZ Series Automatic Tissue Paper Towel Napkin Bundle Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
