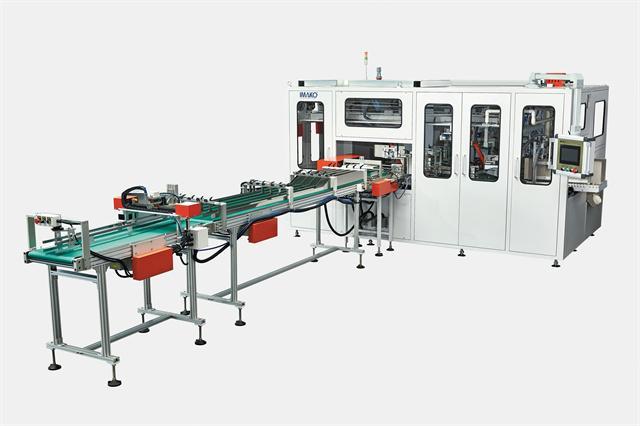

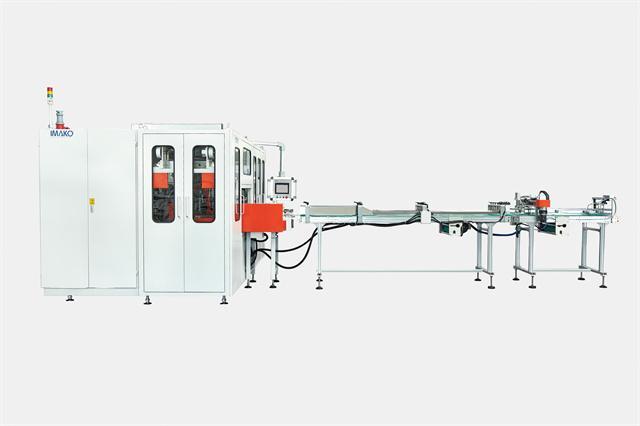

TP-B30T Facial Tissue Bundler Towel Paper Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B30T
Power: 18KW
Application: folded facial tissues, paper napkins and paper hand towels
Weight: 1800kg
Output: 21 bundles/min
Packaging dimension: L(180-500)×W(120-420)×H(85-100)mm
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★ The paper towel arrangement, counting, feeding, filling, pulling and other action unit are servo drive control. It is simple to operate and convenient for maintenance.

TP-B30T main parameter configuration
Scope of application	Single pack facial tissue

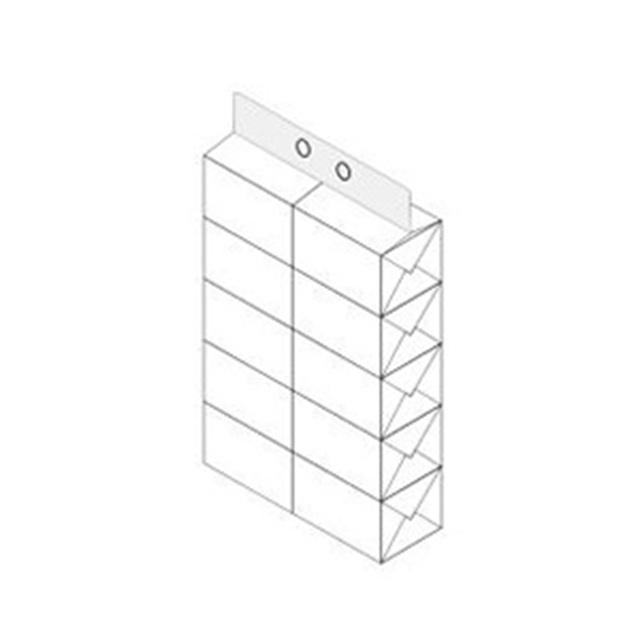

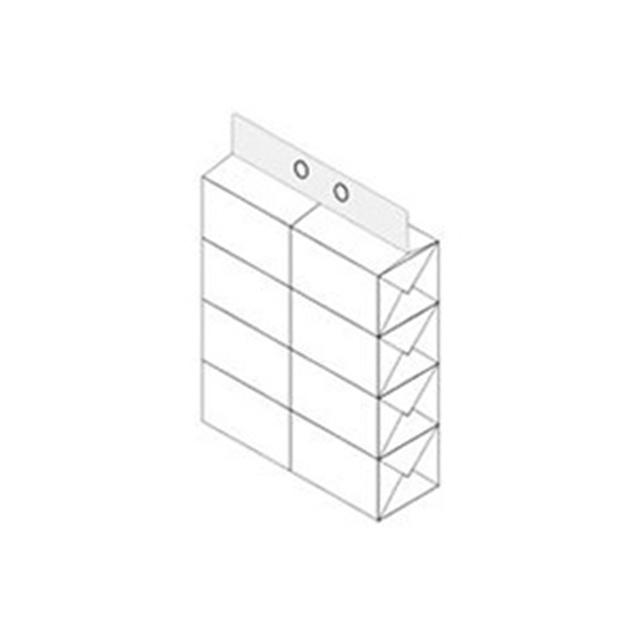

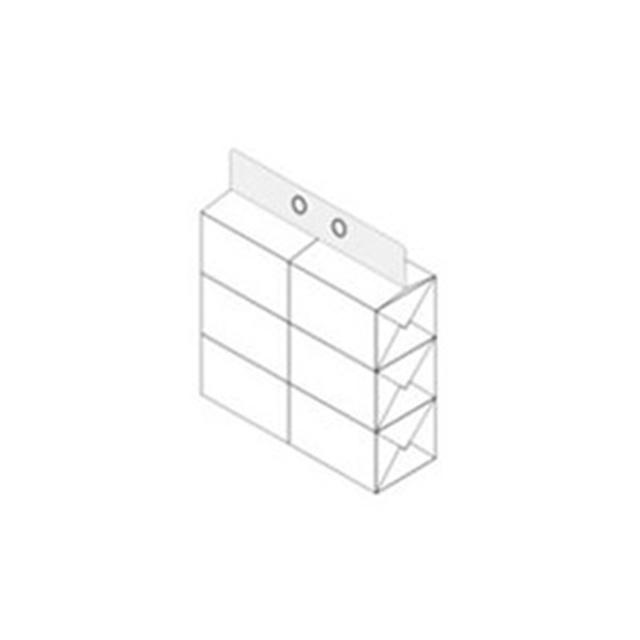

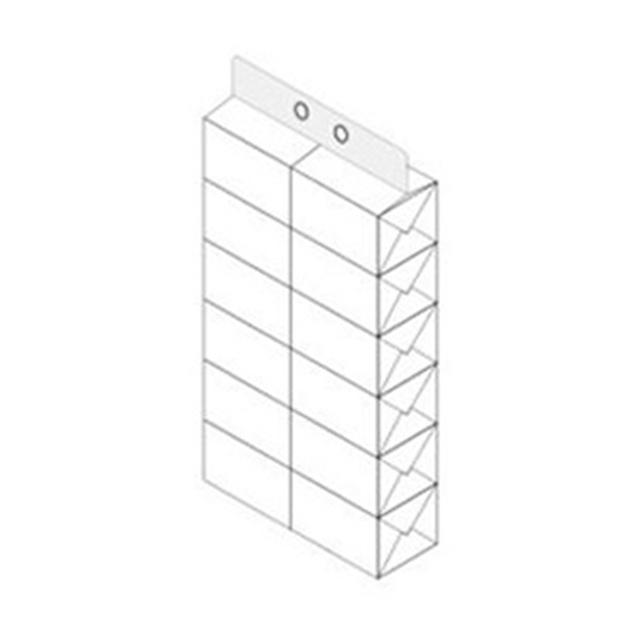

Packing style	1x3、1x4、1x5、1x6 2x3、2x4、2x5、2x6 3x3、3x4、3x5、3x6
Packing style	1x3、1x4、1x5、1x6 2x3、2x4、2x5、2x6 3x3、3x4、3x5、3x6
Bag install mode	Dual bag racks
Bag storage quantity	≤ 300/bags
Machine weight (KG)	1800

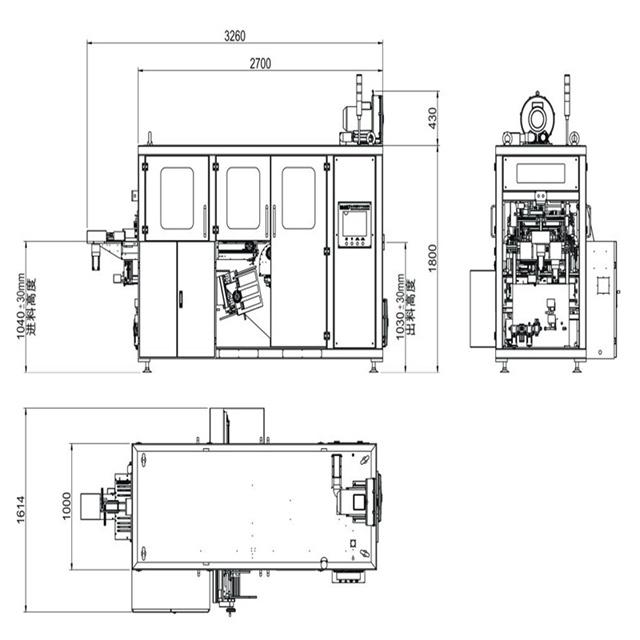

Machine size	L3355 W1580 H1738
Bag type	CPP、PE
Compressed air (mpa)	Air source≥0.6 Air flow≥300L / min
Power supply	308V / 50HZ
Sealing mode	Heating tube heating to seal
Gusset forming mode	Vacuum mold forming

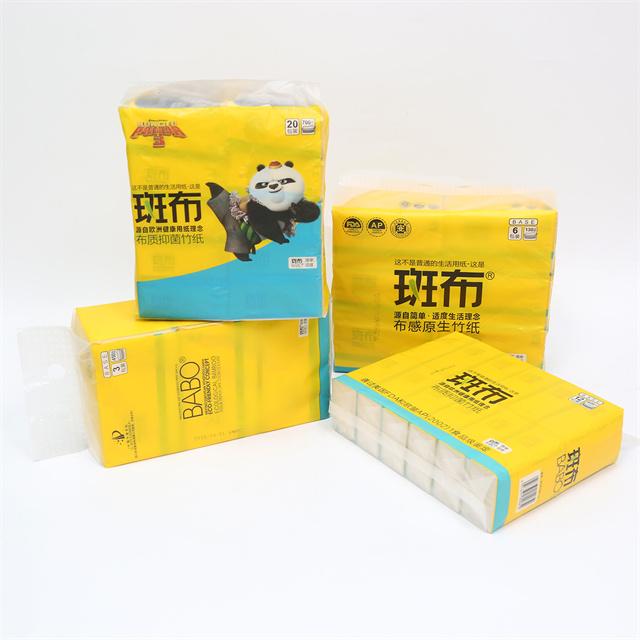

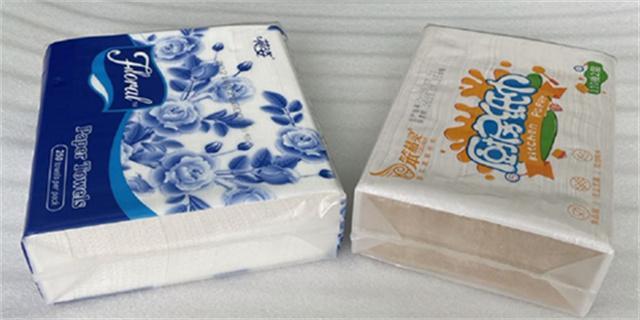

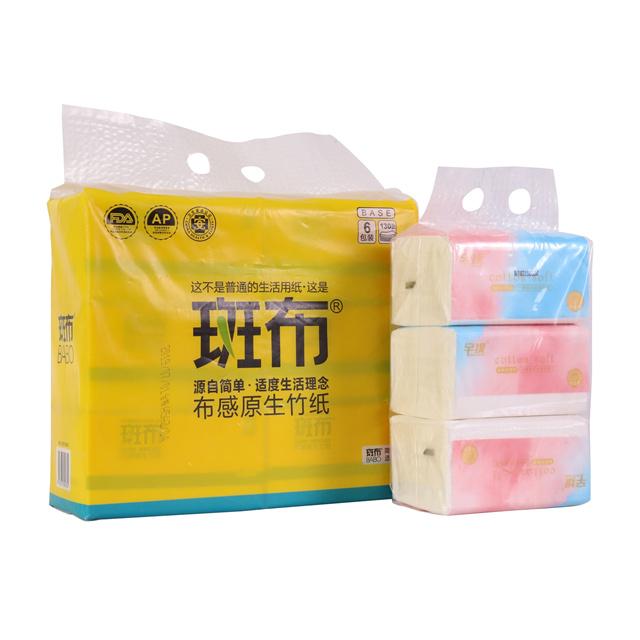

★TP-B30T automatic tissue bundle packing machine is suitable for auto bundle packing single soft pack facial tissue.

Equipped with bag opening detection protection function, air source management function, fault alarm display function, servo overload protection function.

Double column packaging, specification conversion, One click for size changing. It has the advantage of easy operation, high efficiency.

Products Categories

Related Products

More》

Facial Paper Packing Machine Tissue Bundler Towel Tissue Bundler

TP-B30T Facial Tissue Bundler Towel Paper Packing MachineMain Parts

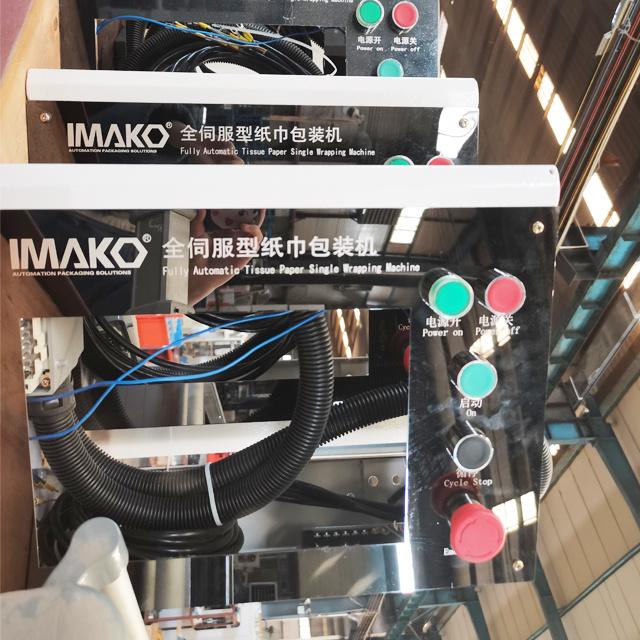

1. Control panel unit

Protects the touch screen for easy use and operation by the operator.

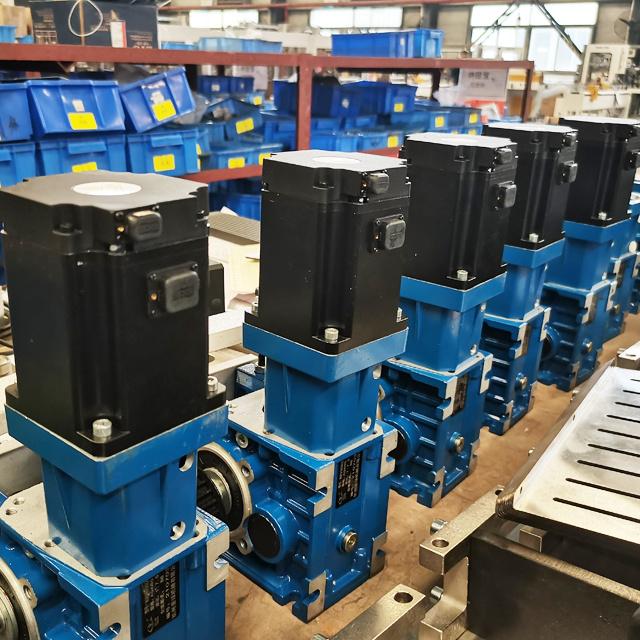

2. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.

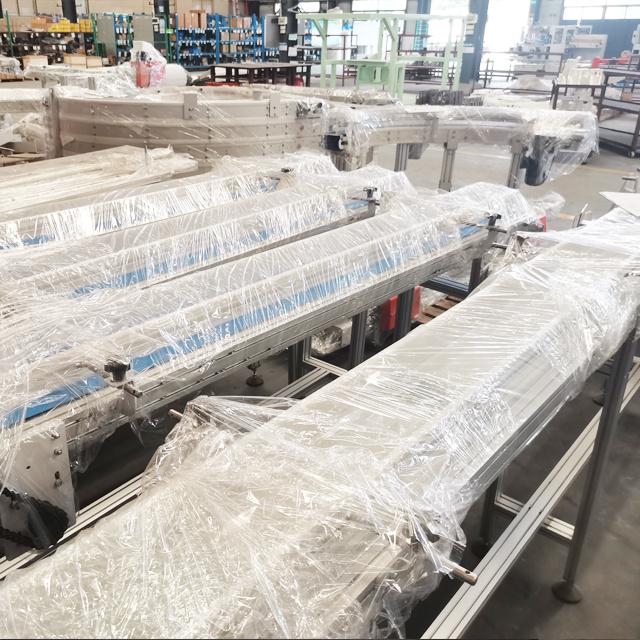

3. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.

Quick Delivery

Shipment requires 20 days for stored machine and 60 days for customized product.

Expertise

Imako have a deep understanding of the industry and the specific needs of their customers. This expertise allows them to design and build high-quality TP-B30T Facial Tissue Bundler Towel Paper Packing Machine that are tailored to meet the unique requirements of each customer.

Increased productivity

TP-B30T Facial Tissue Bundler Towel Paper Packing Machine are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.
