Name: TP-H150 Series Automatic handkerchief paper folding & packaging line
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Folded Paper Towels Packing Machine >

TP-H150 Series Automatic handkerchief paper folding & packaging line

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-H150
Power: 30.5KW
Application: handkerchief paper
Weight: 9500kg
Output: 120Pack/min

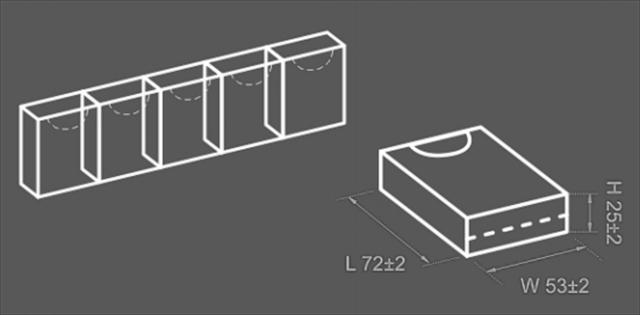

Packaging dimension: Length (L): 72±2/105±2 Width (W): 53±2/53±2 Height (H): 25±2/25±2 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

The machine combine the high qualification rate and effective productivity to one, save labor and raw material cost. Control system is completely self-contained, run stably. Use surface is positive, few and short Fold; Cutting side is smooth, no black and burr; Regular fold, derangerment is 2 mm, no inner fold. And backslash; Side embossing is symmetrical and clear, no delaminating.

TP-H150 handkerchief paper packaging machine main parameter configuration
Specification/Model/ ltem	TP-H150
Unwinders	Dual unwanders	One use one spare
Jumbo roll dia.	≤1500
Tissue open size	Width 205-210
	Length 205-210
Gram weight(g/Cm)	2Ply 18-20
	3Ply 13-16
	4Ply 12-14
Power supply	380V/50HZ
Packaging film material	CPP、PE
Packaging film thickness(mm)	0.04~0.05		Single pack and bundle pack need to use different film material
Film roll diameter(mm)	≤380
Design speed	130packs/min according to 10 sheets
Stable speed	110packs/min according to 10 sheets
Perforation	U or V type
Air compression(MPA)	0.6
Air flow	300

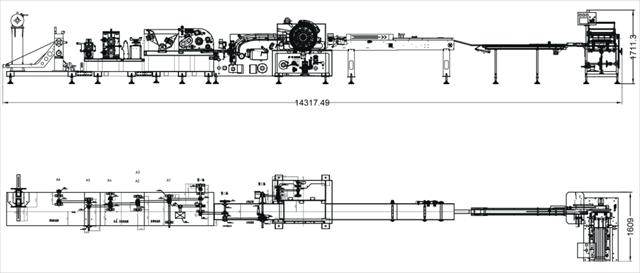

Machi'ne dimension(mm)	16100x2000x2000		Includes bundle packing machine
Machine weight(KG)	9500
Optional device	Hydraulic system, pneumatic system, point to flat embossing, point to concave embossing. point to point embossing.

handkerchief paper packaging

The machine combine the high qualification rate and effective productivity to one, save labor and raw material cost.

Products Categories

Related Products

More》

Handkerchief paper folding machine handkerchief paper packaging machine handkercheif paper production line

TP-H150 Series Automatic handkerchief paper folding & packaging lineMain Parts

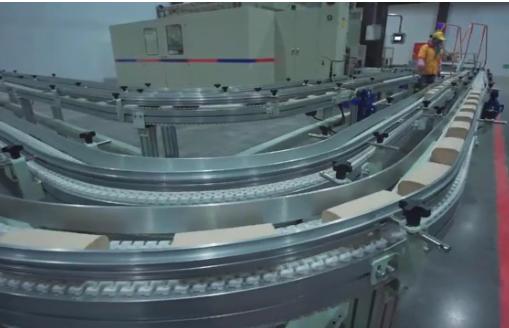

1. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

2. Feeding conveyor

Simple and reliable structure, reasonable transmission design.

3. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Professional Team

We have more than 12 years experiences in household paper production industry and build a professional team with 12 engineers.

Improved hygiene

TP-H150 Series Automatic handkerchief paper folding & packaging line are designed to be clean and hygienic, reducing the risk of contamination and ensuring that products are packaged in a safe and sanitary manner.

Customization

Imako are able to offer customized solutions to their customers, tailoring the TP-H150 Series Automatic handkerchief paper folding & packaging line to meet the specific needs and requirements of each business.
