Name: TP-T15N Napkin Towel Paper Tissue Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Folded Paper Towels Packing Machine >

TP-T15N Napkin Towel Paper Tissue Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-T15N
Power: 12.42KW
Application: Napkin and Soft Drawn Facial Tissue
Weight: 4000kg
Output: 60Packs/Min
Packaging dimension: Length (L): 100-200 Width (W): 100-200 Height (H): 15-100 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

These machines typically have a number of features that allow for efficient and accurate packaging, such as adjustable settings for the size and shape of the package, fast and easy changeover of packaging materials, and high-speed operation.

TP-T15N main parameter configuration
Specification\Model \item	TP-T15N、TP-T15NV、TP-T15NS	Film core dia.(mm)	76
Scope of application	Soft drawn facial tissue, hand towel paper, napkin	Max. film width(mm)	500

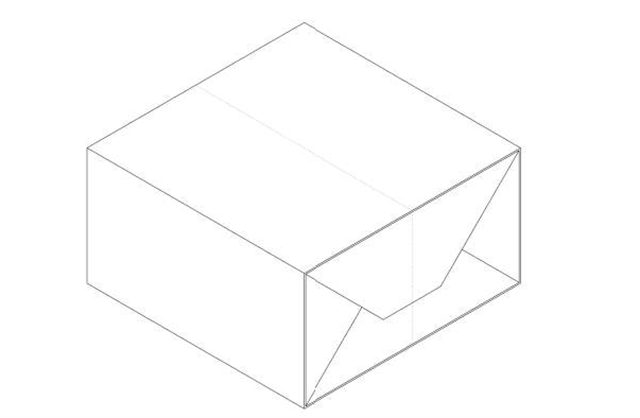

Packing style	3D wrapping	Compressed air(MPA)	0.6
Design speed	70packs/min	Power supply	380V150Hz
Production speed	15-60packs/min	Total heating power(KW)	3.6
Size mould	3 sets	Servo control shafts	8
Machine weight(KG)	4000	Electrical control system	MITSUBISHI,VEICHI,SIEMENS
Packaging material	CPP,PE film	Temp. control system	YUDLAN
Film thickness(mm)	0.035-0.05	Pneumatic system	SMC/AIRTAC
Max. film roll dia.(mm)	≤500	Option device	Air shaft, thermos transfer printer, oval shape perforation

The users of packing machines may include manufacturers of tissues and napkins, as well as other companies that need to package a variety of products in large quantities. The applications of these machines may include packaging for use in hotels, restaurants, hospitals, and other settings.

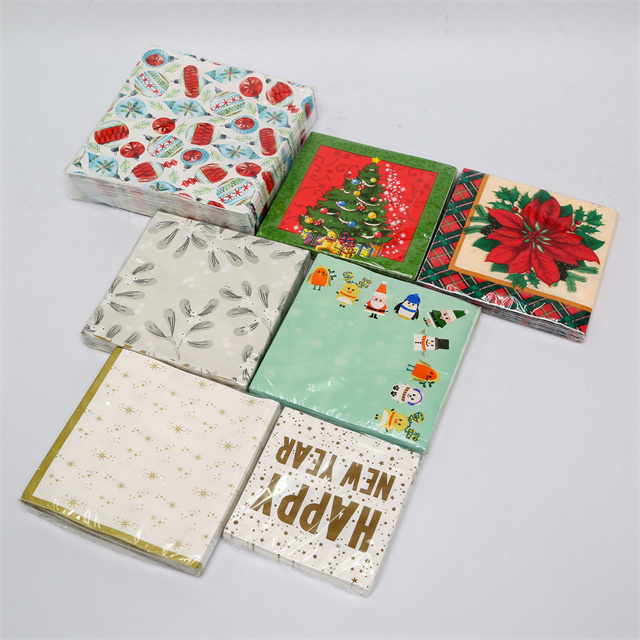

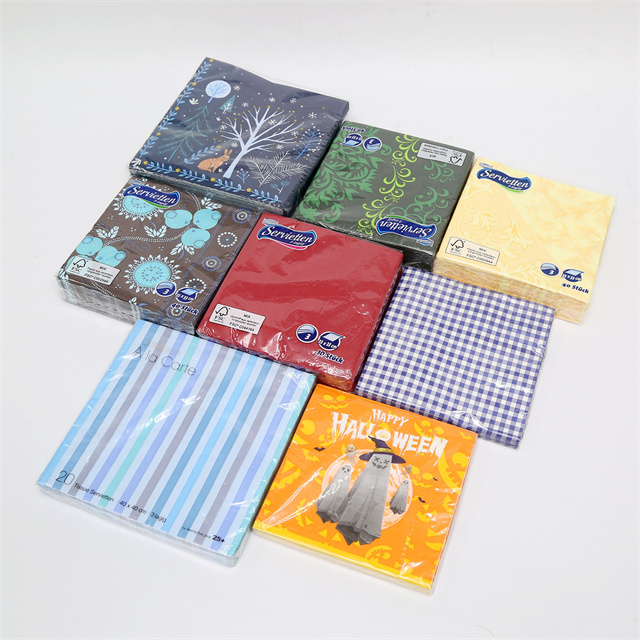

TP-T15N automatic napkin packing machine is suitable for automatically packing napkin and soft drawn facial tissue.

Standard functions: tissue arrangement and forming, void double pack feeding, electrical film correction, auto speed adjustment, tissue length error protection, tissue width error protection, torque overload protection, tissue hook forming, high temperature belts protection.

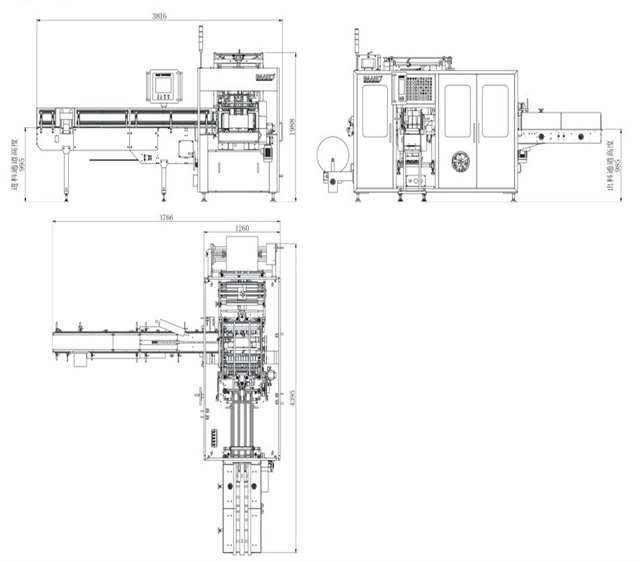

TP-T15 6.jpg

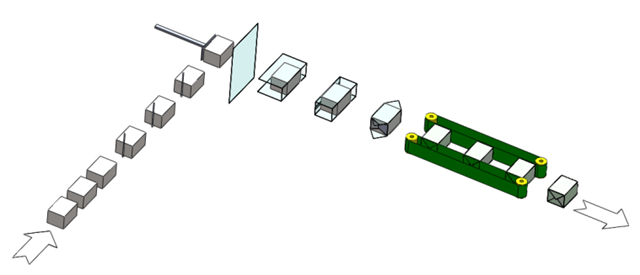

TP-T180流程圖1 .png

Products Categories

Related Products

More》

Napkin Towel Paper Packing Machine Napkin Packaging Machine Napkin Towel Packing Machine

TP-T15N Napkin Towel Paper Tissue Packing MachineMain Parts

1. Feeding conveyor

Simple and reliable structure, reasonable transmission design.

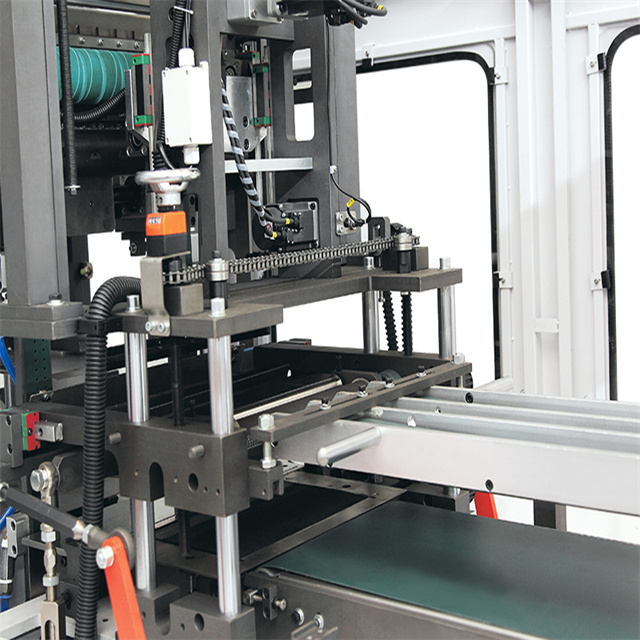

2. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.

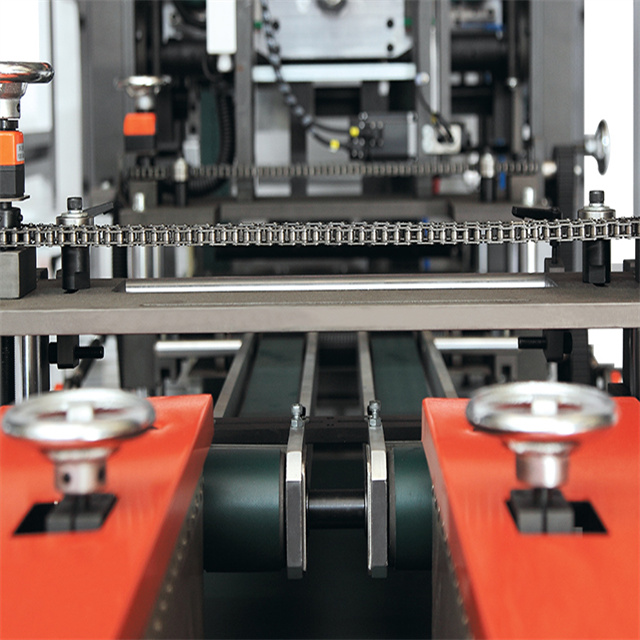

3. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Competitive edge

By investing in TP-T15N Napkin Towel Paper Tissue Packing Machine, businesses can gain a competitive edge over their competitors. The automation and efficiency of the machines can help businesses to stand out in a crowded marketplace and attract new customers.

Good Quality

We have strict quality control processes in place to ensure that TP-T15N Napkin Towel Paper Tissue Packing Machine are of the highest quality. and passed CE, ISO 9001, etc.

Increased productivity

TP-T15N Napkin Towel Paper Tissue Packing Machine are designed to be efficient and accurate, reducing the risk of errors and increasing the speed of the packaging process. This can lead to increased productivity and a more profitable business.

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-T15N Napkin Towel Paper Tissue Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
