Name: TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Folded Paper Towels Packing Machine >

TP-B35TE Series Automatic Tissue Paper Bundle Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B35TE
Power: 20.6KW
Application: Single Soft Packed Facial Tissue, Hand Towel Paper Napkin
Weight: 6500KG
Output: 25 Packs/Minute
Packaging dimension: Length (L): 240-450 Width (W): 120-420 Height (H): 90-270 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

1.Adopts servos control for tissue arrangement, counting, stacking, tissue fill to bag, bag catching, bag conveying, bag opening and seal parts, This machine is easy to operation and maintenance.

2.Adopts central vacuum management mode, can efficiency lower power consumption.

3.Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

4.The machine is suitable for bundle packing 1-3 rows and 1-3 layers, easy to change specification and maintenance, high efficiency.

TP-B35TE main parameter configuration
Specification/Model/ item	TP-B35TE
Scope of application	Single packed tissue to bundle packing	Packing styles
Feeding mode	Horizontal feeding

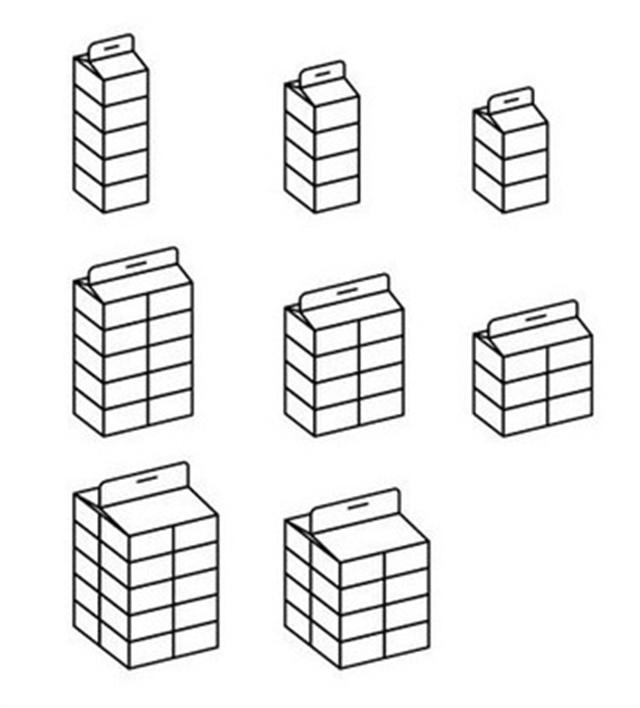

Packing styles (Layer x row x column)	One Layer 1x(1-3x(3-5) Two layers 2x(2-3x(3-5) three layers 3x(2-3x3-5)	According to single pack size
Design speed	25 packs/minute
Stable speed	≤20 packs/minute	Relate to product size
Bag install mode	Dual bag racks
Bag rack storage Qty	≤600 pcs prebags
Single packed tissue range(mm)	L120-210 / W90-110/H60-100

Machine weight (KG)	6500
Bag type	CPP、PE	Thickness:0.05mm
Compressed air(MPA)	Press 0.6mpa flow 30Lmin
Power supply	380V/50HZ
Machine movement control mode	16 shafts servo positioning control	Servo control
Machine main transmission mode	Servo motors drive,belts transmission
Machine color and craft	Deep grey.static spray plaint craft
Bag type	Same to manually packing	Air hole≤2.5mm
Gusset forming mode	Vacuum mold forming

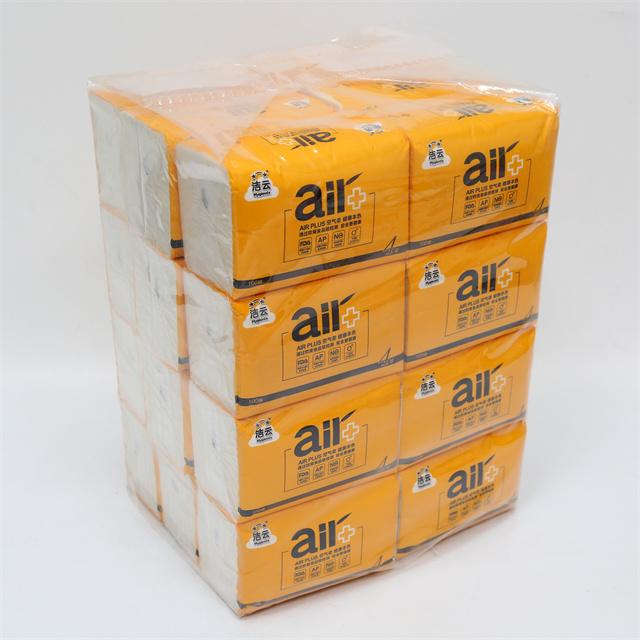

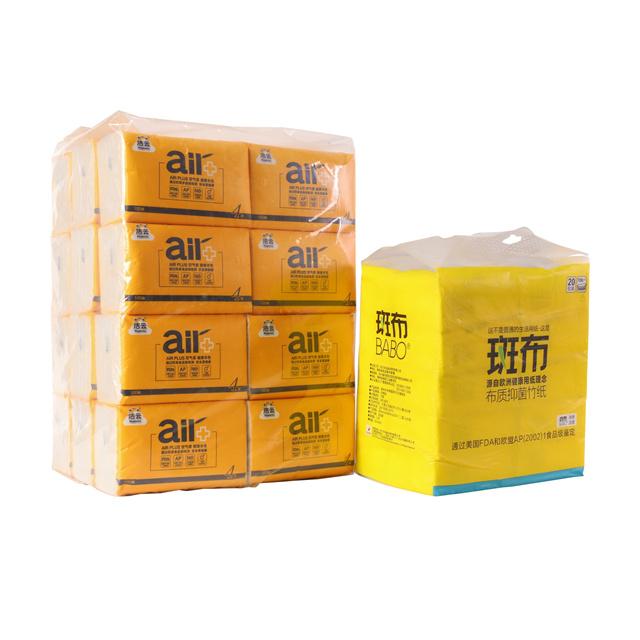

TP-B35TE series automatic tissue paper bundle packing machine is suitable for auto bundle packing single soft packed facial tissue, hand towel paper napkin.

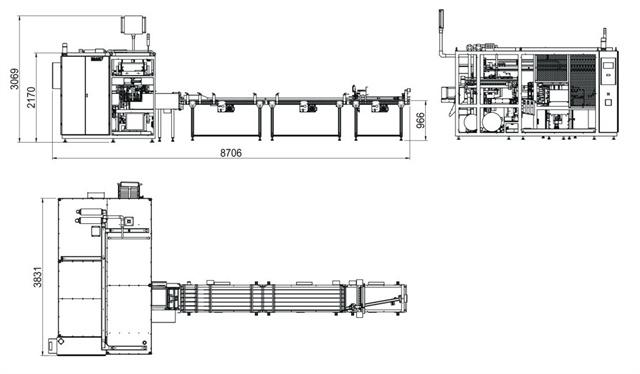

1-8-napkin-bundler_06b TP-B35TE.jpg

Equipped with functions of waste bag free stop automatic rejection, air source management, falut alarm and display, servo overload protection.

B35TE 3.jpg

Products Categories

Related Products

More》

Tissue Paper Packing Machine Tissue Paper Bundle Packing Machine Tissue Paper Bundler

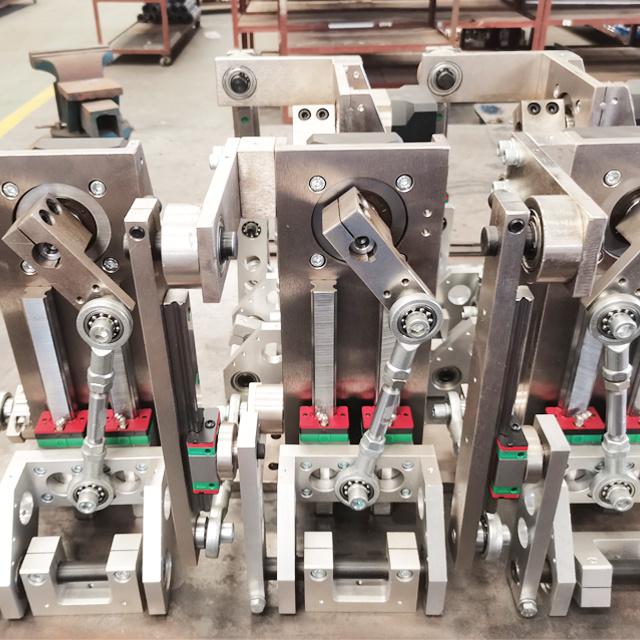

TP-B35TE Series Automatic Tissue Paper Bundle Packing MachineMain Parts

1. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.

2. Machine Base

The structure of the base determines the stability of the whole machine .

3. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.
