YOUR POSITION:HOME > Machines > Tissues Packing Machine >

TP-T180 A tissue making machine is a piece of industrial equipment

Price: Negotiable
Model Number: TP-T180
Power: 12KW,380V/50Hz
Application: Single Tissue Wrapping
Weight: 3000KG
Output: 100Pack/min
Packaging dimension: Length (L): 95-210 Width (W): 80-115 Height (H): 30-100
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

Tissue Packaging Machine Specification

Max.Work Speed

100Pack/min

Total Power

12KW

Pack Range(mm)

Length (L): 95-210

Width (W): 80-115(Extension150)

Height (H): 30-100(Exceeded size can be customized)

Tissue sorting mode

Auto intelligent tissue sorting

4 sections intelligent soft tissue feeding mode

Design speed

110packs/min

relate to product size

Stable speed

100packs/min

relate to product size

Size mould

3sets

Product sizes are

provide by buyer

Machine weight(KG)

3000

Packaging material

CPP, PE film

Film thickness(mm)

0.035-0.05

Max. film roll dia(mm)

500

Film core dia.(mm)

76

international standard

Max. film roll width(mm)

340

Compressed air(MPA)

Air source:≥0.5

Buyer prepare

Power supply

380V/50Hz

According to

national standard

Adaptive voltage change

0.9

According to

national standard

I/O input(VDC)

24

Electricity control system

control loop input

I/O output(VDC)

24

Electricity control system

control loop output

Movement control mode

3 servo shafts

Electronic CAM

positioning control

movement curve

Main transmission mode

20 crmnti mechanical cam +electrical cam

Color and craft

Grey, static spray paint craft

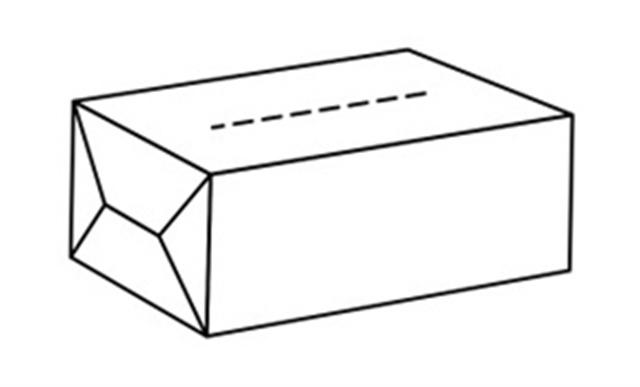

Packing style

3D wrapping

Even heat sealing on film overlap parts

Perforation option

Straight line perforation

Alternative

Perforation option

Oval shape perforation

Alternative


The tissue paper industry has been steadily growing, and it's no surprise that tissue making machines have become a crucial part of this industry. A tissue making machine is a piece of industrial equipment that is used to manufacture various types of tissue paper products. From facial tissues to toilet paper rolls, these machines are able to produce a wide range of products that are essential for daily life.

How Tissue Making Machines Work

Tissue making machines use a range of raw materials such as pulp, recycled paper, water, and chemicals to create tissue paper in large rolls. The process typically involves several steps, including pulping, diluting, refining, cleaning, and drying. Once the tissue paper has been produced, it can be cut and packaged into different sizes and shapes according to customer specifications. Some machines are capable of producing thousands of rolls of tissue paper per hour, making them highly efficient for both small and large-scale production facilities.

The Advantages of Tissue Making Machines

One of the main advantages of tissue making machines is their ability to produce tissue paper products in a cost-effective manner. These machines are designed to streamline the entire production process, which helps reduce labor costs and increase production efficiency. Additionally, the use of automation technology ensures that the quality of the tissue paper products remains consistent throughout the production cycle. This means that customers receive high-quality products that are made to their exact specifications, every single time.

The Future of Tissue Making Machines

The demand for tissue paper products is only expected to grow in the coming years, and this means that tissue making machines will continue to play a critical role in the industry. In fact, advancements in technology are helping to make these machines even more efficient and cost-effective. For instance, some manufacturers are now using artificial intelligence (AI) and machine learning algorithms to optimize the production process and reduce waste. This not only helps reduce costs but also enhances the sustainability of the production process.

In conclusion, tissue making machines are essential for the tissue paper industry and have helped drive its growth in recent years. With the continued advancement of technology, these machines will only become more efficient and cost-effective, further enhancing their importance for the industry as a whole.

tissue single packing

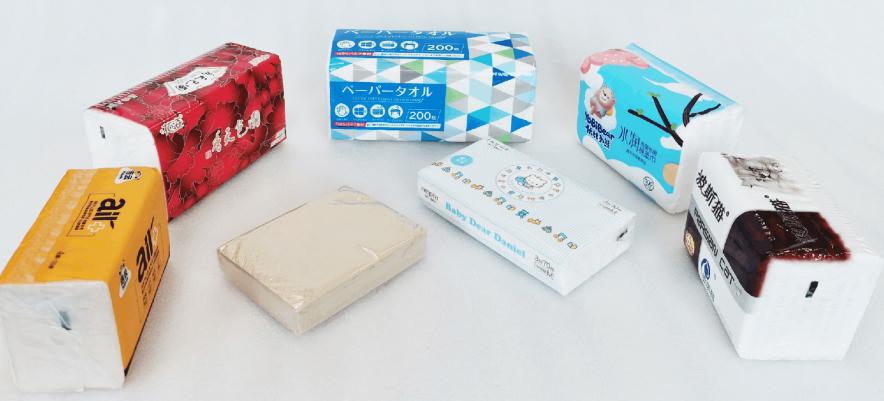

Application of automatic facial tissue single pack machine.

Automatic Facial Tissue Single Packing Machine is specialized type of packaging machine which can pack facial tissue, V fold hand towel paper and napkin.

Advantages of automatic facial tissue single pack machine.



1、Simple operation, safe and reliable.



2、Saving labor cost and improving production efficiency.



3、reliable packaging quality, to ensure product quality



4、Alarm function to improve packaging efficiency.



With the promotion and application of Kleenex single pack machine, baby care, women's skin care use of wipe paper can also be packaged with tissue single packing machine, in order to respond to the trend of consumers pay more and more attention and concern about the quality of household paper products.

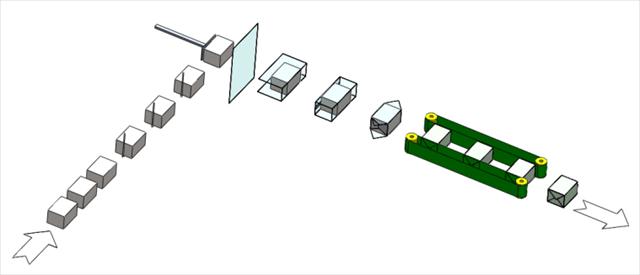

Standard functions: tissue arrangement and forming, feeding speed detect and adjustment, avoid double pack feeding, pusher overload protection,tissue error detection, film volume detection, film releasing detection, paper hook forming, jog operation, link operation.

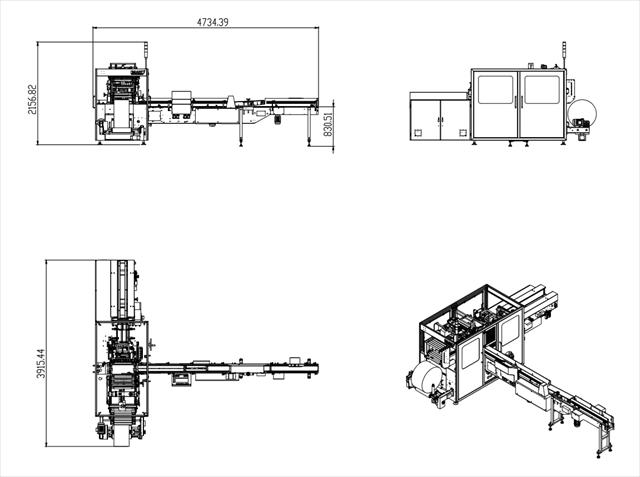

TP-T180流程圖1 .png

TP-T180 A tissue making machine is a piece of industrial equipmentMain Parts

1. Bag making machine suction cups

The suction cups used in a bag making machine for a diaper packaging machine are an important component that helps to hold the filled diaper bags in place as they are being sealed and cut. it create a vacuum around the bags, which helps to maintain the shape and position of the bags during the packaging process.

2. Hook piece

The hook piece is a critical component that helps to hold the filled diaper bags in place as they move through the packaging process. The hook piece is typically mounted on the bed plate of the machine and is designed to engage with the edges of the diaper bags, ensuring that they remain in the correct position as they are sealed and cut.

3. Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.
Related Cases Your Professional TP-T180 A tissue making machine is a piece of industrial equipment Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.
