YOUR POSITION:HOME > Machines > Tissues Packing Machine >

TP-T450 fully automatic tissue paper making machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42
Application: fully automatic tissue paper making machine,tissue paper making machine
Weight: 3000
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.

TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

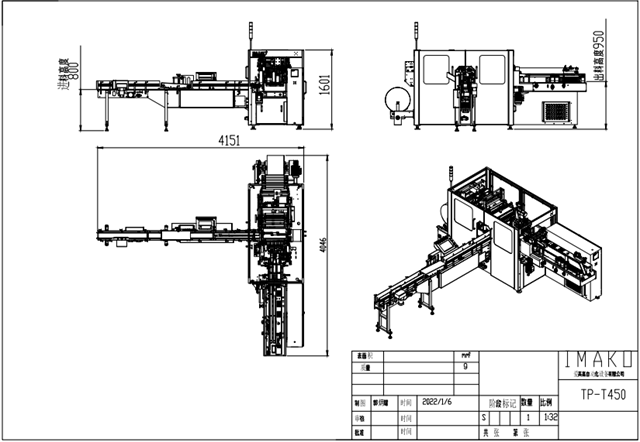

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

Have you ever wondered how tissue paper is made? One of the most popular ways is by using a fully automatic tissue paper making machine. These machines are capable of producing large amounts of high-quality tissue paper with minimal human intervention, making them an efficient option for tissue paper production.

1,The Basics of Fully Automatic Tissue Paper Making Machines

Fully automatic tissue paper making machines are designed to handle the entire tissue paper production process, from raw material input to finished product output. To begin with, the machine takes in raw materials such as pulp, water, and chemicals which are mixed in precise ratios to form a liquid slurry, which is then fed into the machine. The slurry passes through various stages including screening, washing, bleaching, and drying before being rolled into tissue paper rolls of standardized sizes.

2,The Advantages of Fully Automatic Tissue Paper Making Machines

Fully automatic tissue paper making machines have several advantages over other tissue paper manufacturing methods. Firstly, they require significantly less human intervention compared to manual or semi-automatic methods, resulting in reduced labor costs. Additionally, these machines can produce a greater quantity of tissue paper than manual or semi-automatic methods without compromising on quality. Automatic machines also come equipped with sensors and control systems that allow for real-time monitoring of production, ensuring that any issues are identified and addressed immediately, thereby minimizing wastage.

3,The Challenges of Using Fully Automatic Tissue Paper Making Machines

Despite their many advantages, fully automatic tissue paper making machines have some drawbacks. For instance, the initial capital investment required to purchase an automatic tissue paper making machine may be quite steep. Furthermore, regular maintenance and replacement of worn-out parts can also be costly, especially if not handled properly. Finally, fully automatic machines may require specialized personnel to operate and maintain them, further adding to the overall cost of production.

In conclusion, fully automatic tissue paper making machines are an efficient and reliable way of producing tissue paper. With their ability to handle large volumes of production with minimal human intervention, these machines are an excellent option for businesses seeking to optimize their tissue paper manufacturing process. However, the challenges associated with their purchase, maintenance, and personnel training should also be considered when making the decision to acquire one.

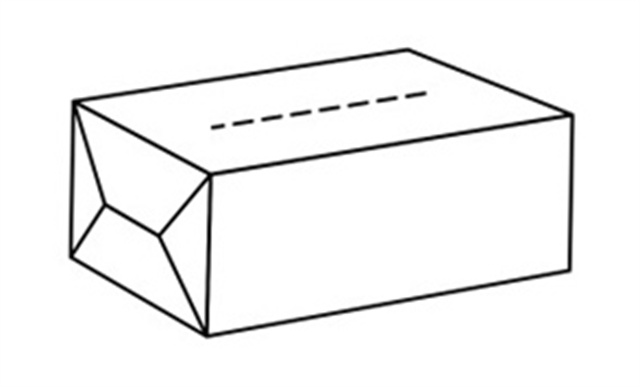

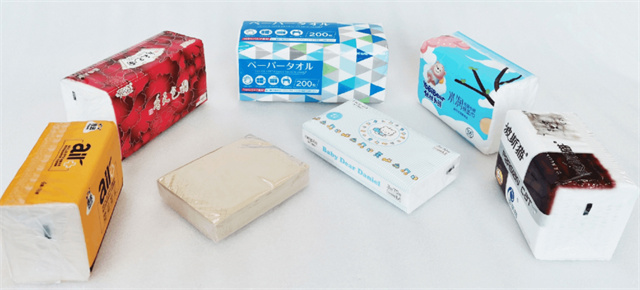

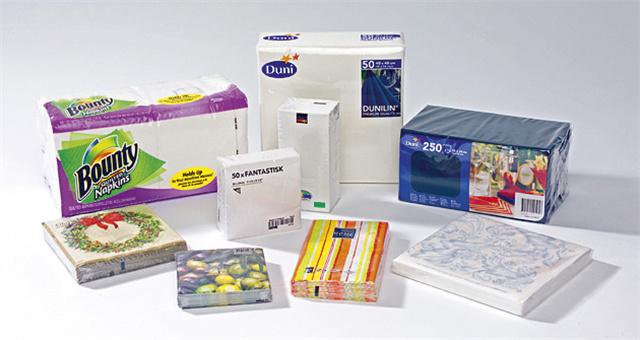

TP-T450 multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

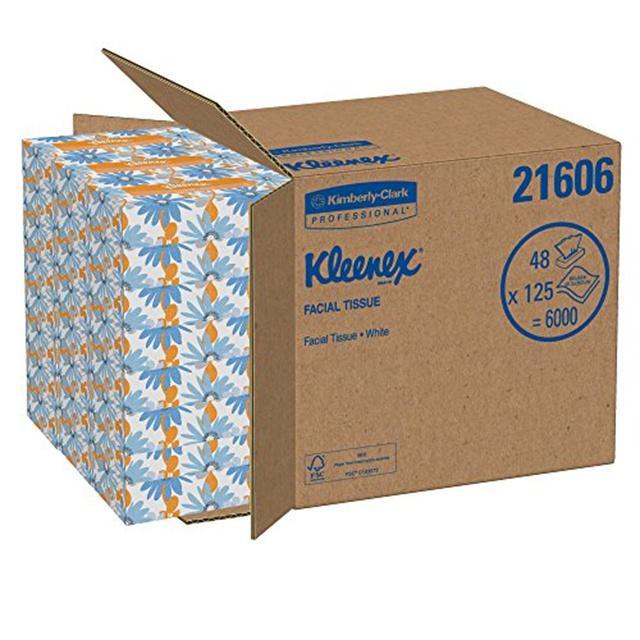

facial tissue.jpg

Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

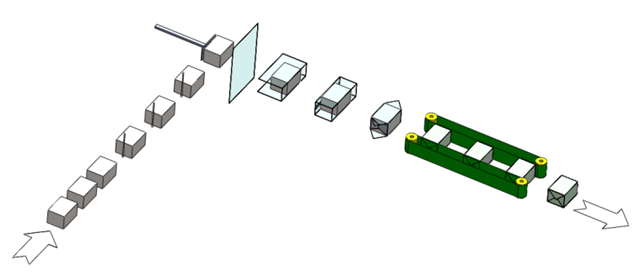

TP-T180流程圖1 .png

TP-T450 fully automatic tissue paper making machineMain Parts

1. Sealing parts

Sealing parts are responsible for creating an airtight or watertight seal around the packaged diapers. These parts are crucial in ensuring that the diapers remain fresh and free from contamination during storage and transportation.

2. Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.

3. Sensors

The sensors are used to detect the presence and position of items on the pallet. They provide feedback to the control system to ensure that the arm and gripper are in the correct position to pick up or place items.
Related Cases Your Professional TP-T450 fully automatic tissue paper making machine Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.
