YOUR POSITION：HOME > Machines > Kitchen Paper Rolls Packing Machine >

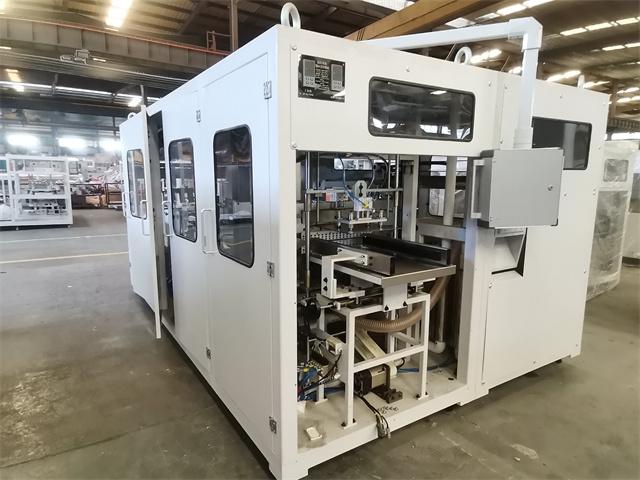

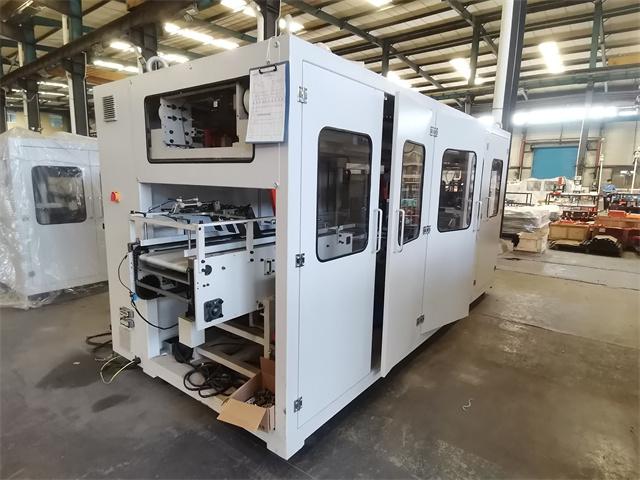

Full Automatic Kitchen Towel Tissue Paper Roll Packaging Machine

Price: Negotiable
Model Number: TP-B30RE
Power: 19KW
Application: Toilet Roll Paper/Kitchen Towel Bundle Pack
Weight: 3400KG
Output: 22Pack/min
Packaging dimension: Length (L): 300-690 ,Width (W): 160-440 ,Height (H): 80-280
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

Max. Work Speed:

22Pack/min

Total Power:

19KW

Pack Range(mm):

Length (L): 300-690

Width (W): 160-440

Height (H): 80-280

TP-B30RE main parameter configuration
Specification\Model\ ltem	TP-B30REV、TP-B30REM
Scope of Application	Core、coreless roll paper
Feeding type	ASF auto double lanes feeding system
Design speed	22 packs/min
Stable speed	20packs/min(relate to product size)
Gusset type	Vacuum forming mould
Cut off modo	lnsert & cut
Bag storage structure	Dual bag racks
Bag storage qty	600 bags
Bag material	PE film
Compressed air(MAP)	Pressure O.6MPA Flow 30l/min
Power supply	380V/50HZ
Total motor power(KW)	19
Machine weight (KG)	3400
Bag type	premade bag
Servo control shaft nos	10
Electrical control system	VEICHI,MITSUBISHI
Temp.system	YUDILAN
Pneumatic system	SMC.AlRTAC
Optional device	lnk code printer.thermos transfer printer

Kitchen Towel Tissue Paper Roll Packaging

Kitchen Paper Roll Packaging



Products Categories

Related Products

More》

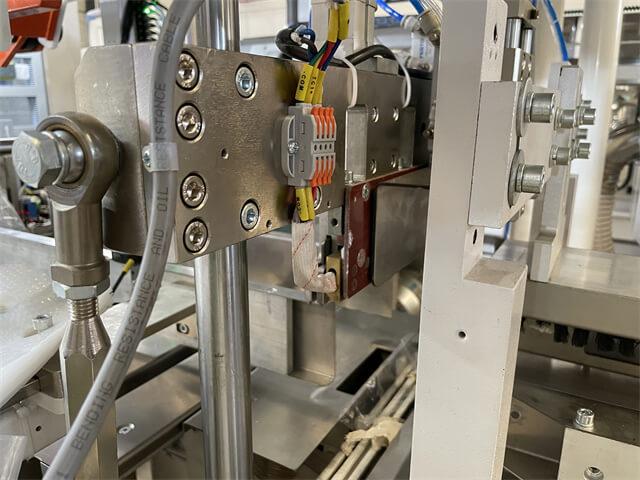

Full Automatic Kitchen Towel Tissue Paper Roll Packaging MachineMain Parts

1. Film Dragging Roll

The Film Dragging Rollers are an important component of the Kitchen paper rolls packing machine. They are used to pull the film across the surface of Kitchen paper rolls and ensure that the film is tightly wrapped around the rolls.

2. The Film Frame

The Film Frame is also designed to be adjustable, which allows for different sizes and shapes of film to be used as needed. This is important for ensuring that the film fits snugly around Kitchen paper rolls and provides a secure and tamper-proof package.In addition to supporting the film, it also helps to ensure that the film is properly aligned with the rollers and other components of the machine.
