Name: TP-B30R Multi Rolls Kitchen Paper Bundle Packing Machine Bag Wrapping Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Kitchen Paper Rolls Packing Machine >

TP-B30R Multi Rolls Kitchen Paper Bundle Packing Machine Bag Wrapping Machine

Price: Negotiable
Model Number: TP-B30R
Power: 20.2KW
Application: Automatic bundle packing single packed/unpack core/coreless roll paper
Weight: 3400KG
Output: 25 packs/min
Packaging dimension: Length (L): 170-660 Width (W): 180-260 Height (H): 85-170 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

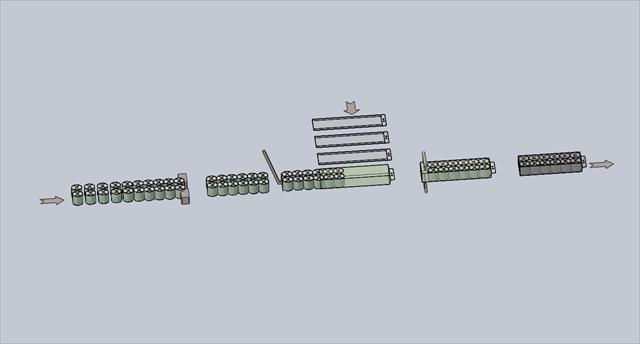

★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operation and maintenance.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

TP-B30R main parameter configuration
Specification/Model/ ltem	TP-B30RV、TP-B30RM
Scope of application	Single core/coreless roll paper
Feeding type	ASF automatic double lanes intelligent feeding system	Exclude standing device
Design speed	25 packs/min	relate to product size
Stable speed	15-22 packs/min	relate to product size
Packaging film install structure	Dual bag racks
Gusset type	Vacuum mould
Scrap cut off mode	Insert & cut teeth share

Bag storage QTY	600 pre-bag	Can customize if size exceed
Machine weight(KG)	3400
Bag material	PE film	Thickness 0.05mm

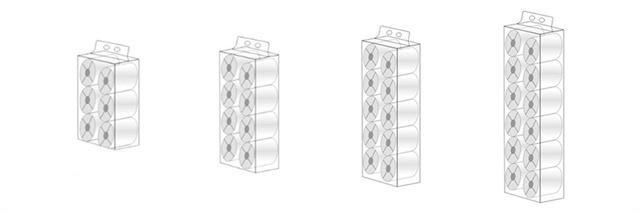

Packing style(mm)	①L90-170 D.90-105	Suitable for corel coreless roll paper
	2x3、 2x4、2x5、2x6
	②L85-170 D.90-130
	2x3、2x4、2x5
Air compression(MPA)	Pressure 0.6 Flow 300Lmin	Buyer provide
Bag type	Pre-bag	Air hole≥2.5mm

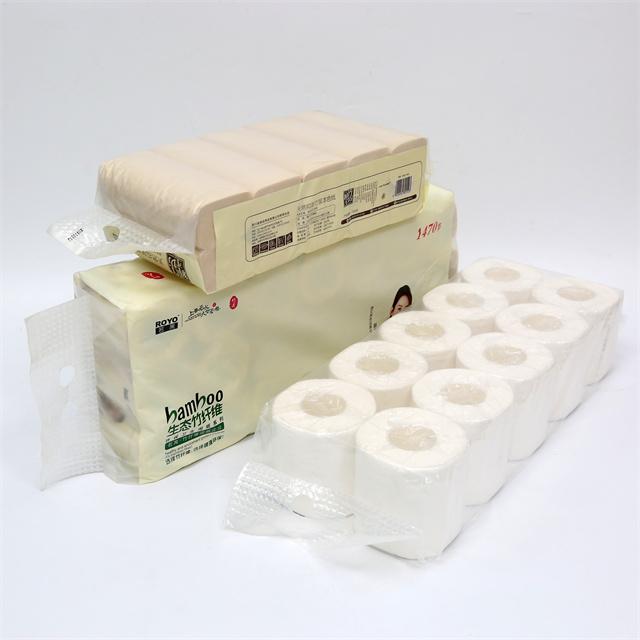

TP-B30R series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.

Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30R 1.jpg

Products Categories

Related Products

More》

Kitchen Towel Packing Machine Kitchen Paper Packing Machine Kitchen Roll Packing Machine

TP-B30R Multi Rolls Kitchen Paper Bundle Packing Machine Bag Wrapping MachineMain Parts

1. Conveyor Timing Belts

The Belt is designed with specific dimensions and specifications that are tailored to the requirements of Kitchen paper roll packing machine.The belt is also designed with specific grooves and ribs that help to improve its grip on the rollers and ensure smooth and consistent movement.

2. Transmission Speed Reducer

The speed reducer is an essential component of Kitchen paper rolls packing machine, as it allows the machine to operate efficiently and effectively. It helps to ensure that the rollers and other components move smoothly and accurately, which is necessary for the proper packaging of Kitchen paper rolls.

3. Best Electric motors

Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.Ensure that the motor is properly installed and maintained，Regular maintenance and inspection can help to prolong the life of the motor.
