YOUR POSITION：HOME > Machines > Wet Wipe Packing Machine >

FA-P55 Sanitary Tissue Pad Napkins Wet Wipe Roll Film Packing Machine

Price: Negotiable
Model Number: FA-P55
Power: 12KW
Application: sanitary, pad and wet wipe
Weight: 2500KG
Output: 60 packs/min

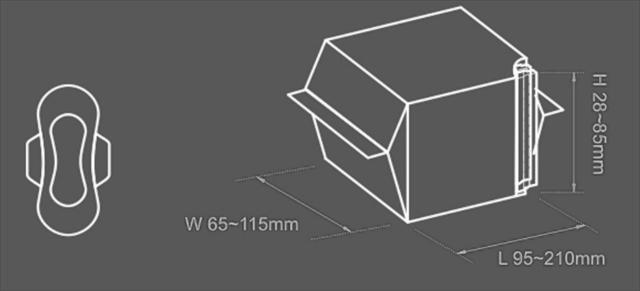

Packaging dimension: Length (L): 95-210 Width (W): 65-115 Height (H): 28-85 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


Adopts inverter to control film roll placing. Adopts servos for film pulling & positioning, mold positioning, mold move and lift up, seal, fill into bag, bag open etc. Has advantages of complete operation configuration, high efficiency, easy to operate, wide size range, quick sizes changing, convenient maintenance, low cost in using etc..

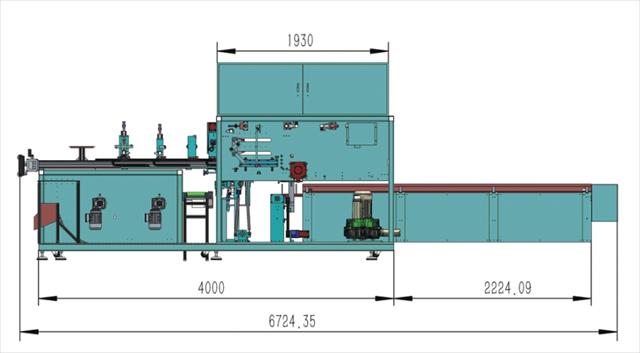

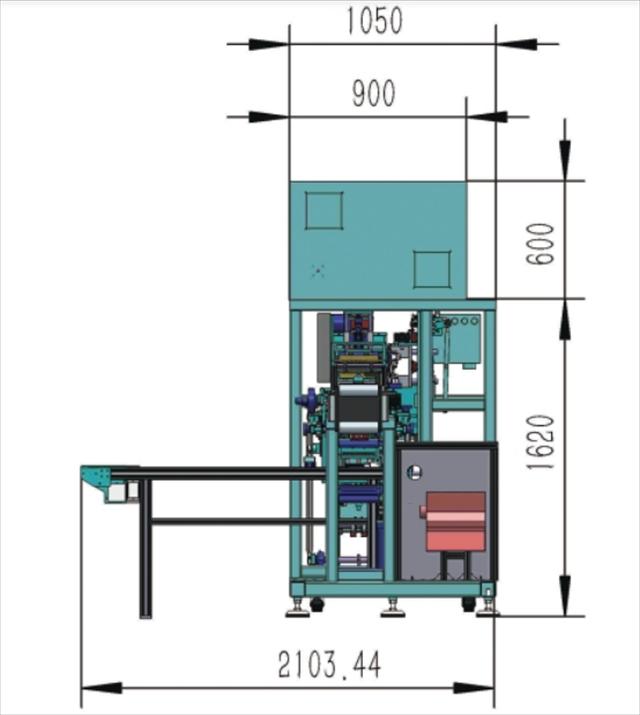

FA-P55 main parameter configuration

Specification/Model/

ltem

FA-P55

Scope of application

Manually put material(can connect with palletizer)

Design speed

60 packs/min

Relate to product size

Stable speed

≥55 packs/min

Size mould

3 sets

Standard configuration,

sizes provide by buyer

Machine weight(KG)

≤2500

Packaging material

PE,CPP,OPP lamination film

Film thickness(mm)

0.04-0.08

Maximum film

diameter(mm)

600

Maximum film

width(mm)

110

Fimcore diameter(mm)

76

According to national standard

Compressed air(WAP)

Air compression

≥0.5

Buyer prepare

Power supplier

380V/50HZ

According to national standard

Suit vollage fluctuate

+/-10%

According to national standard

I/O input (VDC)

24

Electrical control circle input

I/O output (VDC)

24

Electrical control circle output

Machine movement

control mode

3 shafts servo shaft

posiioning oontral

Electric cam movement curve

Machine main

transmission mode

20 crmnti mechanical Cam+

electric Cam transmission

Machine color and craft

Oyster grey,static spray plant craft



FA-P55 automatic sanitary napkin packing machine is suitable for automatically packing sanitary, pad and wet wipe.





This machine has functions of sealing time constant, double material auto alarm and stop, film roll detection, inching, link operation.

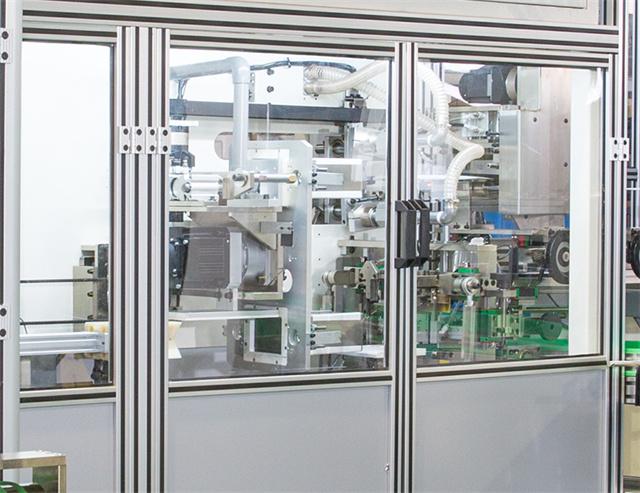

FA-P55 Sanitary Tissue Pad Napkins Wet Wipe Roll Film Packing MachineMain Parts

1. Bag-making parts

The machine uses a die cutter or other mechanism to cut the bag material into the desired shape and size. The formed bags are then transferred to a conveyor belt for further processing.

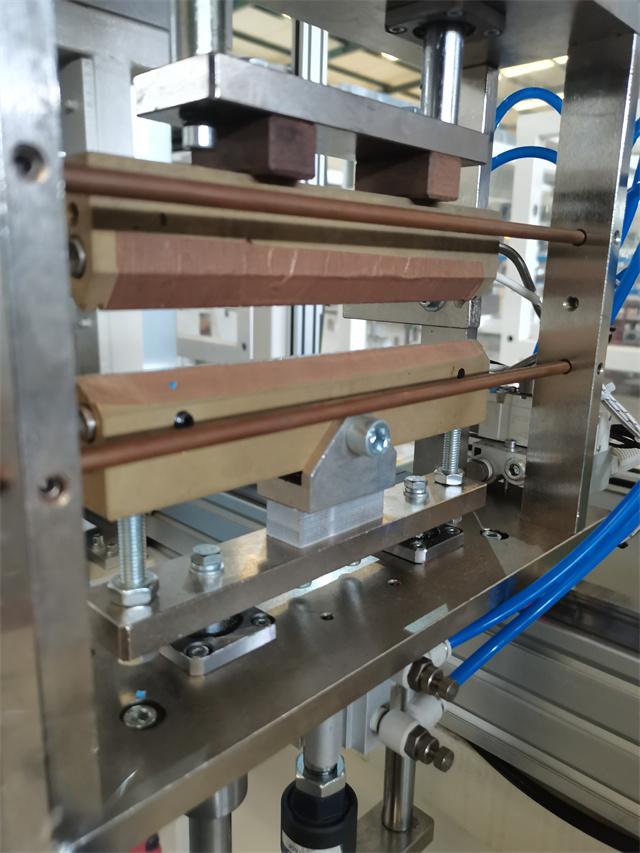

2. Bagging components

It is usually equipped with a sensor that ensures the bags are properly positioned before the filling process begins.

3. Electric cabinet

It is typically made of a durable, high-quality material that can withstand the rigors of daily use and the high-speed movement of the packaging machine. It is designed to be easily accessible for maintenance and repairs, and is typically equipped with doors or panels that can be easily removed for access to the internal components.

Related Certification
Imako TP-100S Tissue Packing Machine CE Certificate
Imako TP-T180M Automatic Tissue Packing Machine UDEM Certificate
Imako TP-T200M Automatic Tissue Wrapping Machine UDEM Certificate
Imako Automatic Packaging Machine SGS Certificate

Customer Reviews



Score
 Remove

Review Title

Review Text

   The versatility of the wet tissue packing machine is impressive


Michael  2024-06-06

wet tissue packing machine handles different package sizes with ease, giving us the flexibility we need in our production
   wet tissue packing machine


Emma  2024-06-06

Our company has seen a significant increase in productivity since implementing the wet tissue packing machine. The quality of the packaging is excellent, and it has boosted our overall efficiency.
   I appreciate the compact size of the Wet Wipe Packing Machine


David K  2024-06-06

As a small business owner, I appreciate the compact size of the Wet Wipe Packing Machine. It fits perfectly into our space and has improved our packaging process immensely
   wet tissue packing machine environmentally friendly and aligns with our sustainability goals


Sarah T  2024-06-06

We've experienced a noticeable reduction in packaging waste since using the Wet Wipe Packing Machine
   The Wet Wipe Packing Machine is a game-changer for our production line.


John S  2024-06-06

Wet Wipe Packing Machine efficient, reliable, and easy to operate, saving us time and labor costs.
