YOUR POSITION:HOME > Machines > Tissues Packing Machine >

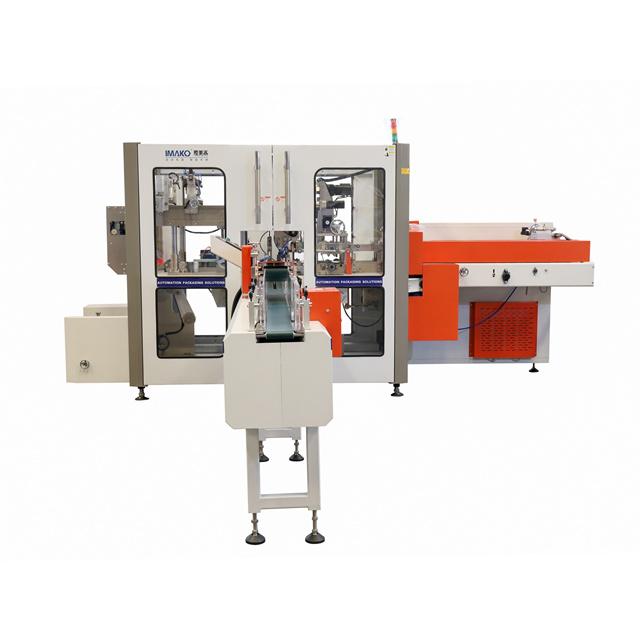

TP-T450 Full Servo High Speed Tissue Paper Soft Draw Single Wrapping Machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42
Application: Facial Tissue,V Fold Wipes, Napkins, Non-Woven Fabric, Dust-Free Paper
Weight: 3000
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.



TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

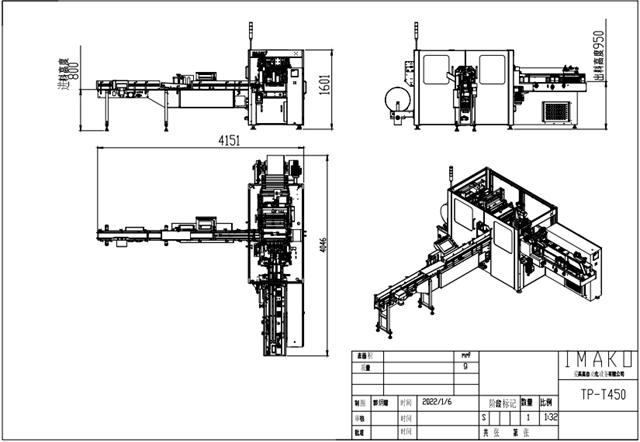

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500,Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

Features
The tissue paper packing machine is designed with several features that make it an idealchoice for packaging tissue paper products. Some of the key features include:1. High-speed packaging: The tissue paper packing machine is designed to operate at highspeeds, making itpossible to pack a large number of tissue paper products in a short amountof time.
2. Automatic operation: The machine is designed to operate automatically, with minimal humanintervention required. This ensures that the packaging process is efficient, accurate, andconsistent.
3. User-friendlyinterface: The machine is designed with a user-friendly interface, making it easyto operate and maintain.
4. Durable construction: The machine is constructed using high-quality materials that ensure its durability and longevity.
5. Customizable: The tissue paper packing machine can be customized to meet the specificpackaging requirements of different tissue paper products.Uses
The tissue paper packing machine can be used for a wide range of applications in variousindustries, including:
1. Paper industry: The machine can be used for packaging tissue paper products in the paperindustry.
2. Food industry: The machine can be used for packaging paper towels and other tissue paperproducts used in the food industry.
3. Healthcare industry: The machine can be used for packaging facial tissues and toilet rollsused in the healthcare industry.


Functionality
The tissue paper packing machine is designed to ensure efficient and accurate packaging oftissue paper products. The machine functions by:
1. Loading the tissue paper products onto the machine.
2. Wrapping the tissue paper products in film or paper.
3. Sealing the packaging using heat or adhesive.
4. Printing labels or branding information on the packaging5. Dispatching the packaged tissue paper.

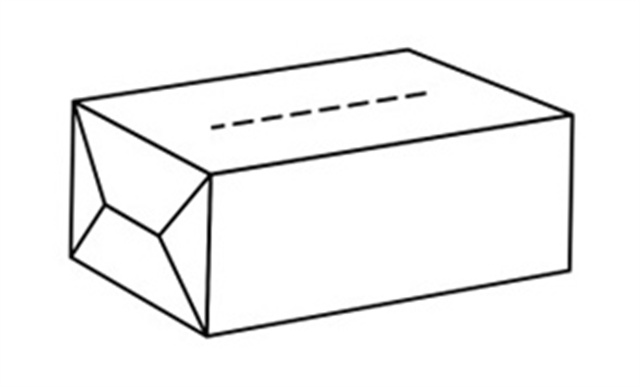

TP-T450 multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

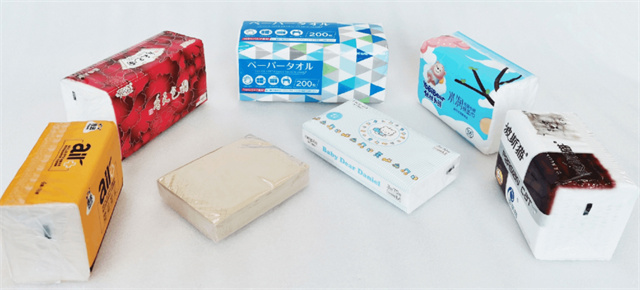

facial tissue.jpg




Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

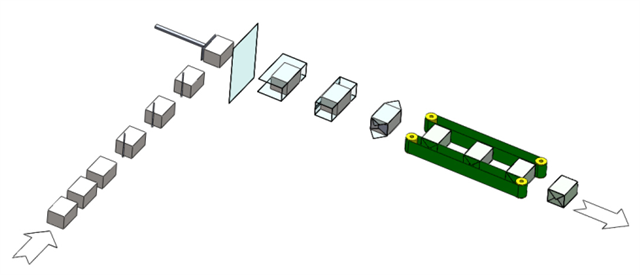

TP-T180流程圖1 .png

TP-T450 Full Servo High Speed Tissue Paper Soft Draw Single Wrapping MachineMain Parts

1. Conveyor Timing Belts

The Belt is designed with specific dimensions and specifications that are tailored to the requirements of Kitchen paper roll packing machine.The belt is also designed with specific grooves and ribs that help to improve its grip on the rollers and ensure smooth and consistent movement.

2. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.

3. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.
