YOUR POSITION:HOME > Machines > Tissues Packing Machine >

TP-T450 tissue paper machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42
Application: fully automatic tissue paper making machine,tissue paper making machine
Weight: 3000
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

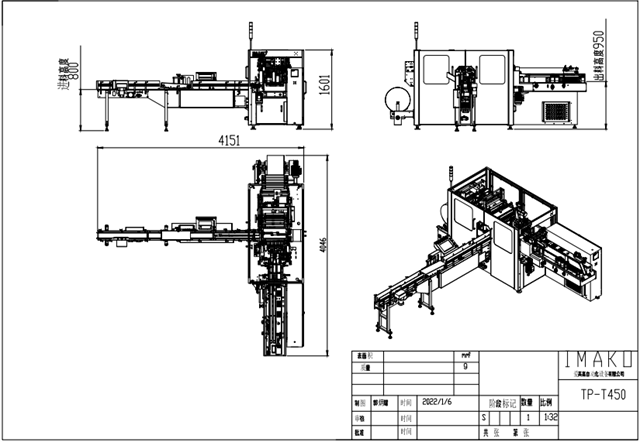

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPP、PE&Complex film

Film roll Max. range(mm)

Diameter:≤500,Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function units、Electronic handwheel adjustment Unit (All units can operate independently)

Have you ever wondered how tissue paper is made? One of the most popular ways is by using a fully automatic tissue paper making machine. These machines are capable of producing large amounts of high-quality tissue paper with minimal human intervention, making them an efficient option for tissue paper production.

1,The Basics of Fully Automatic Tissue Paper Making Machines

Fully automatic tissue paper making machines are designed to handle the entire tissue paper production process, from raw material input to finished product output. To begin with, the machine takes in raw materials such as pulp, water, and chemicals which are mixed in precise ratios to form a liquid slurry, which is then fed into the machine. The slurry passes through various stages including screening, washing, bleaching, and drying before being rolled into tissue paper rolls of standardized sizes.

2,The Advantages of Fully Automatic Tissue Paper Making Machines

Fully automatic tissue paper making machines have several advantages over other tissue paper manufacturing methods. Firstly, they require significantly less human intervention compared to manual or semi-automatic methods, resulting in reduced labor costs. Additionally, these machines can produce a greater quantity of tissue paper than manual or semi-automatic methods without compromising on quality. Automatic machines also come equipped with sensors and control systems that allow for real-time monitoring of production, ensuring that any issues are identified and addressed immediately, thereby minimizing wastage.

3,The Challenges of Using Fully Automatic Tissue Paper Making Machines

Despite their many advantages, fully automatic tissue paper making machines have some drawbacks. For instance, the initial capital investment required to purchase an automatic tissue paper making machine may be quite steep. Furthermore, regular maintenance and replacement of worn-out parts can also be costly, especially if not handled properly. Finally, fully automatic machines may require specialized personnel to operate and maintain them, further adding to the overall cost of production.

In conclusion, fully automatic tissue paper making machines are an efficient and reliable way of producing tissue paper. With their ability to handle large volumes of production with minimal human intervention, these machines are an excellent option for businesses seeking to optimize their tissue paper manufacturing process. However, the challenges associated with their purchase, maintenance, and personnel training should also be considered when making the decision to acquire one.

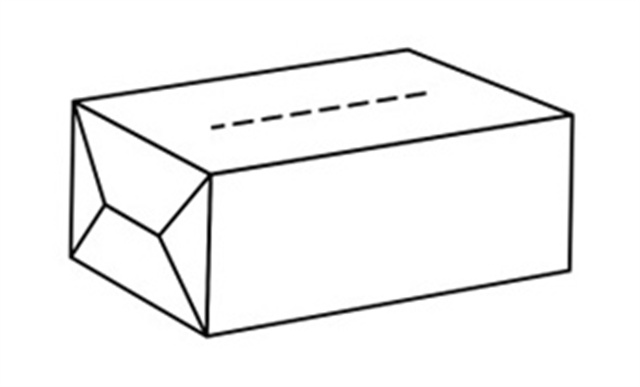

TP-T450 multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

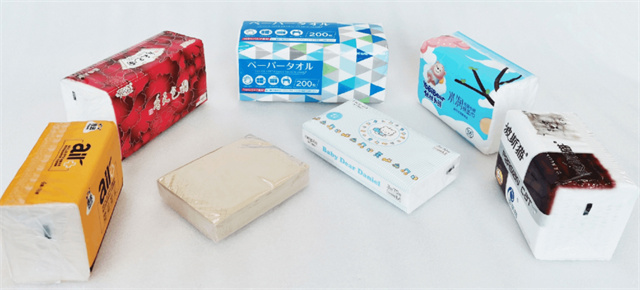

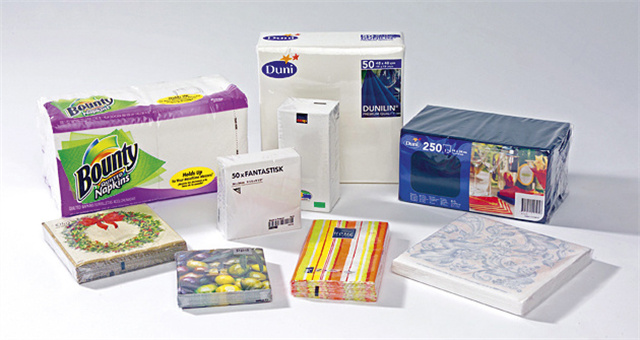

facial tissue.jpg


Tissue paper machines are an essential part of the manufacturing process for tissue paper products. These machines are designed to produce a wide variety of tissue papers including bathroom tissues, facial tissues, and paper towels. This article will discuss the various types of tissue paper machines, their functions, and how they are used in modern-day manufacturing.

Types of Tissue Paper Machines

There are two main types of tissue paper machines: the tissue napkin machine and the toilet paper machine. The tissue napkin machine is used to produce facial tissues, handkerchiefs, and serviettes. This machine uses a combination of mechanical and pneumatic systems to convert paper into tissue products. The toilet paper machine, on the other hand, is used for producing bathroom tissues and paper towels. This machine uses a similar process, but it is much larger and produces rolls of paper that can be cut into smaller pieces.

Functions of Tissue Paper Machines

The primary function of a tissue paper machine is to convert large rolls of paper into smaller rolls or individual tissue products. The machine takes the paper through a series of processes, including cutting, embossing, and folding. Once the process is complete, the tissue products are packaged and ready for distribution. Another important function of tissue paper machines is to ensure the quality of the product. The machines use sensors and control systems to monitor the production process and ensure that the tissue products meet the desired specifications.

Usage of Tissue Paper Machines

Tissue paper machines play a critical role in modern manufacturing processes. They are widely used in the tissue paper industry for producing a range of products including bathroom tissues, facial tissues, paper towels, and napkins. The machines are also used in the food industry for producing packaging materials for food products. Additionally, tissue paper machines are used in the medical industry for producing disposable medical products such as gowns, masks, and drapes.

Conclusion

Tissue paper machines are an integral part of modern manufacturing processes. They are used in various industries to produce a wide range of tissue products. The machines are designed to ensure consistent quality and high production efficiency. With the continued advancements in technology, tissue paper machines are expected to become even more efficient and cost-effective in the future.


Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

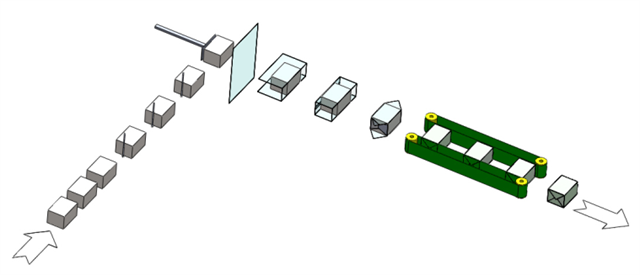

TP-T180流程圖1 .png

TP-T450 tissue paper machineMain Parts

1. Electric cabinet

It is typically made of a durable, high-quality material that can withstand the rigors of daily use and the high-speed movement of the packaging machine. It is designed to be easily accessible for maintenance and repairs, and is typically equipped with doors or panels that can be easily removed for access to the internal components.

2. Transmission Speed Reducer

The speed reducer is an essential component of Kitchen paper rolls packing machine, as it allows the machine to operate efficiently and effectively. It helps to ensure that the rollers and other components move smoothly and accurately, which is necessary for the proper packaging of Kitchen paper rolls.

3. Control system

The control system is the brain of the robot that manages all of the movements of the arm and gripper. It receives instructions from the central control system and interprets them to control the motors that move the arm and gripper.
