Name: Full Servo Tissue Packaging Machine For Singe Pack TP-T180
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Tissues Packing Machine >

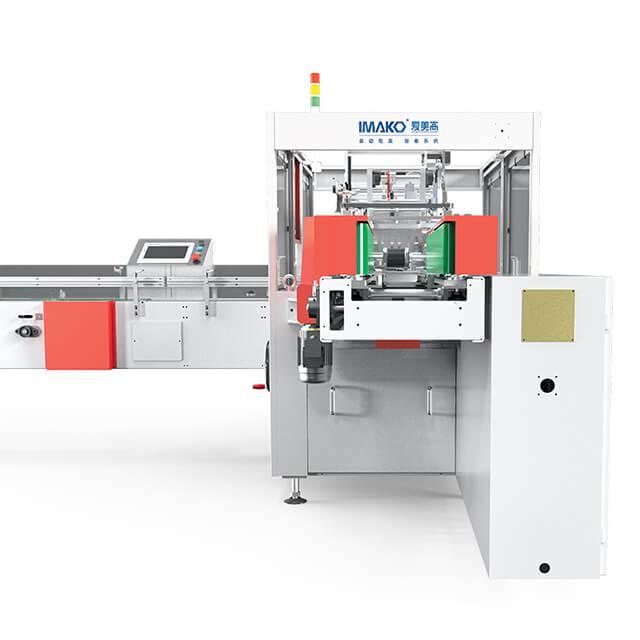

Full Servo Tissue Packaging Machine For Singe Pack TP-T180

Price: Negotiable
Model Number: TP-T180
Power: 12KW,380V/50Hz
Application: Single Tissue Wrapping
Weight: 3000KG
Output: 100Pack/min
Packaging dimension: Length (L): 95-210 Width (W): 80-115 Height (H): 30-100
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

TP-180 single tissue Packaging machine main feature:

1) Wide Range Use

TP-180 single tissue Packing machine is suitable for automatically single packing soft drawn facial tissue, kitchen paper, V fold hand towel paper and napkin.

2) Control System

This machine adopts inverter for controlling tissue arrangement and feeding. Film perforation, film pulling and positioning, film cut off and center sending are controlled by servo motors.

3) Standard Functions

Tissue arrangement and forming, feeding speed detect and adjustment, avoid double pack feeding, pusher overload protection,tissue error detection, film volume detection, film releasing detection, paper hook forming, jog operation, link operation.

4) Advantages

Complete operation functions, high efficiency, easy to operate, wide specification range, quick size change over, convenient maintenance,low cost for using etc.

Tissue Packaging Machine Specification

Max.Work Speed	100Pack/min
Total Power	12KW
Pack Range(mm)	Length (L): 95-210
	Width (W): 80-115(Extension150)
	Height (H): 30-100(Exceeded size can be customized)
Tissue sorting mode	Auto intelligent tissue sorting	4 sections intelligent soft tissue feeding mode
Design speed	110packs/min	relate to product size
Stable speed	100packs/min	relate to product size
Size mould	3sets	Product sizes are
Size mould	3sets	provide by buyer
Machine weight(KG)	3000
Packaging material	CPP, PE film
Film thickness(mm)	0.035-0.05
Max. film roll dia(mm)	500
Film core dia.(mm)	76	international standard
Max. film roll width(mm)	340
Compressed air(MPA）	Air source:≥0.5	Buyer prepare
Power supply	380V/50Hz	According to
Power supply	380V/50Hz	national standard
Adaptive voltage change	0.9	According to
Adaptive voltage change	0.9	national standard
I/O input(VDC)	24	Electricity control system
I/O input(VDC)	24	control loop input
I/O output(VDC)	24	Electricity control system
I/O output(VDC)	24	control loop output
Movement control mode	3 servo shafts	Electronic CAM
Movement control mode	positioning control	movement curve
Main transmission mode	20 crmnti mechanical cam +electrical cam
Color and craft	Grey, static spray paint craft

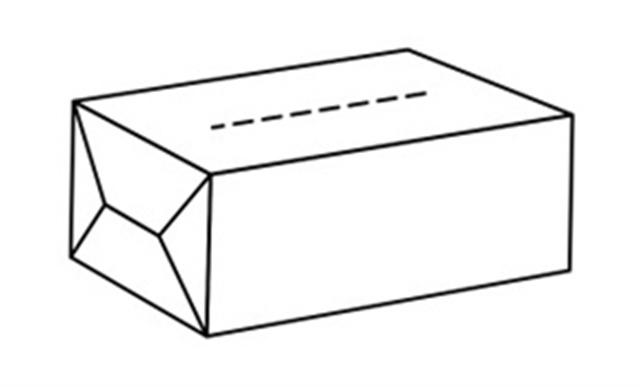

Packing style	3D wrapping	Even heat sealing on film overlap parts
Perforation option	Straight line perforation	Alternative
Perforation option	Oval shape perforation	Alternative

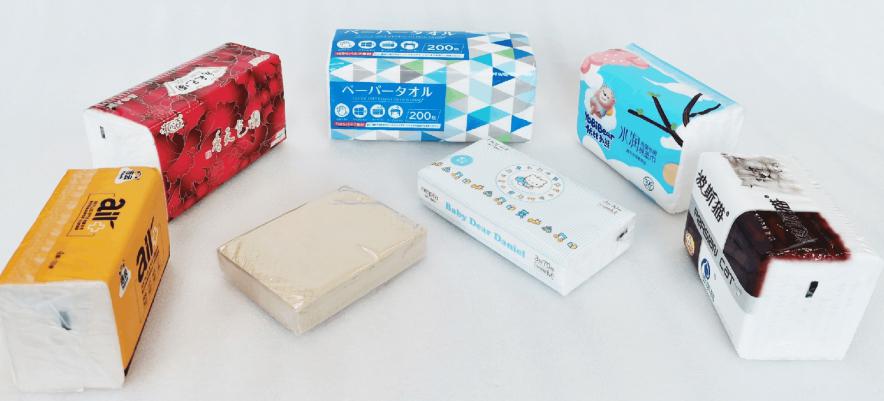

facial tissue single packing

Application of automatic facial tissue single pack machine.

Automatic Facial Tissue Single Packing Machine is specialized type of packaging machine which can pack facial tissue, V fold hand towel paper and napkin.

Advantages of automatic facial tissue single pack machine.

1、Simple operation, safe and reliable.

2、Saving labor cost and improving production efficiency.

3、reliable packaging quality, to ensure product quality

4、Alarm function to improve packaging efficiency.

With the promotion and application of Kleenex single pack machine, baby care, women's skin care use of wipe paper can also be packaged with tissue single packing machine, in order to respond to the trend of consumers pay more and more attention and concern about the quality of household paper products.

Standard functions: tissue arrangement and forming, feeding speed detect and adjustment, avoid double pack feeding, pusher overload protection,tissue error detection, film volume detection, film releasing detection, paper hook forming, jog operation, link operation.

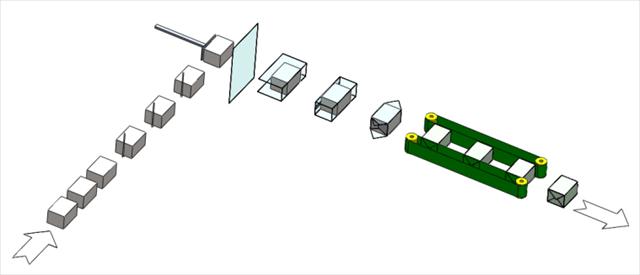

TP-T180流程圖1 .png

Products Categories

Related Products

More》

Tissue Packaging Machine Singe Tissue Packaging Machine Tissue Packing Machine

Full Servo Tissue Packaging Machine For Singe Pack TP-T180Main Parts

1. Bagging components

It is usually equipped with a sensor that ensures the bags are properly positioned before the filling process begins.

2. Machine Base

The structure of the base determines the stability of the whole machine .

3. Sealer

The sealer typically consists of a heating element, a sealing bar, and a pressure mechanism, which work together to create a strong and secure seal on the package. The sealer is an essential component of the sanitary packaging process.
