Name: TP-C20 Tissue Paper Towel Carton Packing Machine Case Packer
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Tissues Packing Machine >

TP-C20 Tissue Paper Towel Carton Packing Machine Case Packer

Price: Negotiable
Model Number: TP-C10
Power: 12KW
Application: Facial Tissue,Napkin,V fold Hand Towel Paper
Weight: 4000kg
Output: 10 cartons/min
Packaging dimension: Length (L): 150-240 Width (W): 230-450 Height (H): 270-450 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★ This machine adopts PLC and 3 shafts servo movement controller for controlling unit, realize servo controlling for paper feeding, distribution, arrangement, catch and carton open, filling, sealing.

★ This machine realizes auto stacking and carton packing single packed big size tissue paper.

★ Adopt standard carton open and sealing unit, easy to operate and change sizes.

★ HIM interface, parameters can be set on touch screen directly, easy to operate.

TP-C20 main parameter configuration
Scope of application	Single film pack big size tissue
Feedling mode	Auto intelligent single lane feeding system
Feeding speed	Maximum feeding speed is 120 bags/min
Single pack paper size	L200mm/W170mm/H80mm,Single pack size tolerance 5mm single pack sze has to in machine range

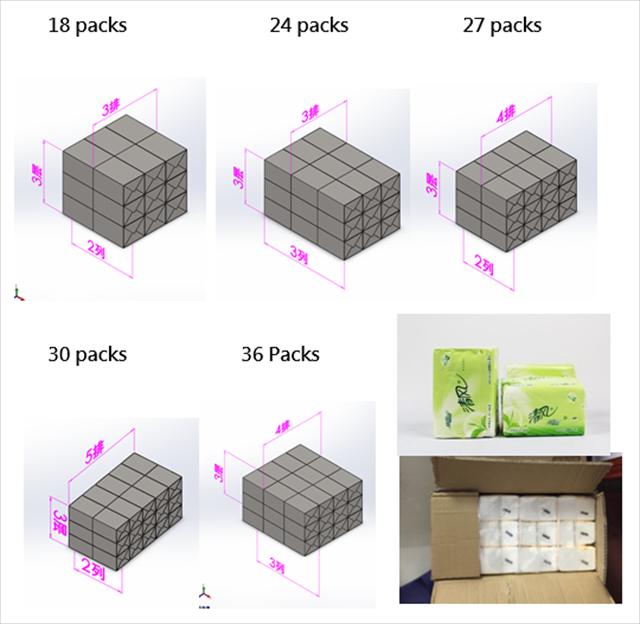

Paper array	(Layer x Row x Column)	See drawing
Design speed	10 cartons/min	Relate to product size
Stable speed	7 cartons/min
Percent of pass		ln standard size range
Carton structure	3-ply corrugated paper, thickness 5mm	simple carton,need to punch the foldng mark in advance

Carton placing mode	Side vertical single storage position
Carton storage nos	100 cartons	Single working position
Sealing mode	Tape sealer
Machine weight(KG)	4000
Compressed air(MAP)	≥0.6	Buyer prepare
Power supply	380V/50HZ
Suit voltage fluctuate range	+/-10%	According to national standard
I/O input(VDC)	24	Electrical system controls circle input
I/O output(VDC)	24	Electrical system controls circle output
Machine movement control mode	Servo/inverterlcylinder positioning control

★ Fault self-diagnosis and alarm, can find out the faults and it’s position quality and will auto display on the touch, easy for trouble shouting and machine maintenance.

★ Monitoring system: Detect both bags and paper to avid machine running without bag or without product.

★ Adopts tapes for auto sealing carton, firm and nice seal. Stably in running.

★ Adopts servo system for intelligently material feeding, wide size application.

★ Equipped with air source management, fault alarm and display, servo overload protection.

Products Categories

Related Products

More》

Tissue Carton Packing Machine Tissue Paper Case Packer Tissue Box Packing Machine

TP-C20 Tissue Paper Towel Carton Packing Machine Case PackerMain Parts

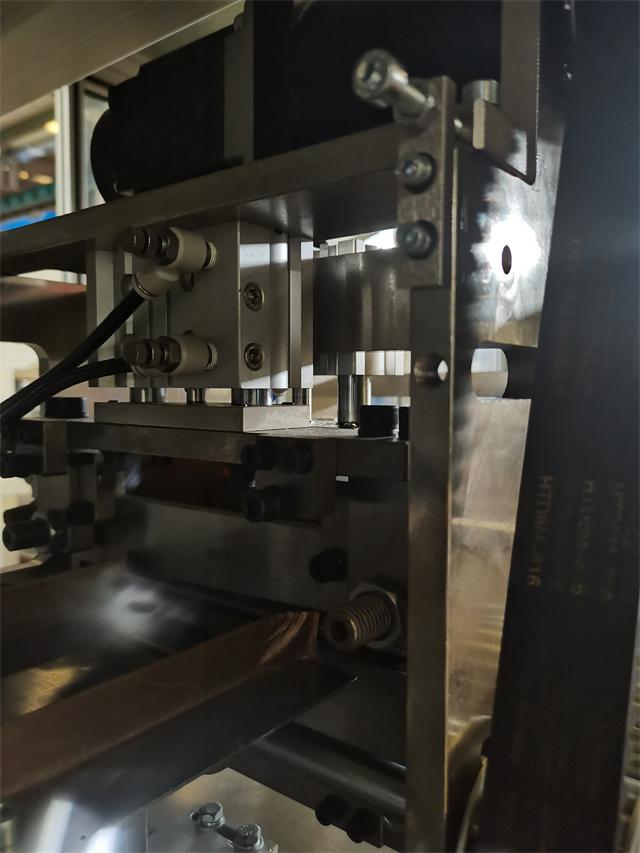

1. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.

2. Sealer

The sealer typically consists of a heating element, a sealing bar, and a pressure mechanism, which work together to create a strong and secure seal on the package. The sealer is an essential component of the sanitary packaging process.

3. Insertion of corners

Insertion of corners refers to the process of folding and securing the corners of the diaper package to create a secure and stable package. The corners are typically folded inward and then sealed to prevent the contents from spilling out or being damaged during storage and transportation.
