Automatic Facial Tissue Paper Making Machine Bundle Packer

Price: Negotiable
Model Number: TP-B35TE Tissue Paper Bundle Packer
Power: 20.6KW
Application: Single Soft Packed Facial Tissue, Hand Towel Paper Napkin
Weight: 6500KG
Output: 25 Packs/Minute
Packaging dimension: Length (L): 240-450 Width (W): 120-420 Height (H): 90-270 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

★ Adopts servos control for tissue arrangement, counting, stacking, tissue fill to bag, bag catching, bag conveying, bag opening and seal parts, This machine is easy to operation and maintenance.

★ Adopts central vacuum management mode, can efficiency lower power consumption.

★ Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

★ The machine is suitable for bundle packing 1-3 rows and 1-3 layers, easy to change specification and maintenance, high efficiency.

TP-B35TE main parameter configuration

Specification/Model/

item

TP-B35TE

Scope of application

Single packed tissue to

bundle packing

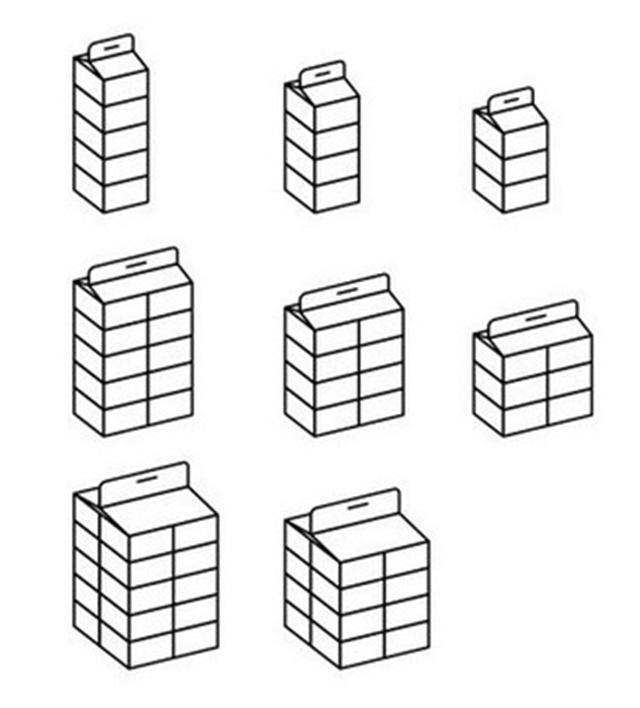

Packing styles

Feeding mode

Horizontal feeding

Packing styles

(Layer x row x column)

One Layer 1x(1-3x(3-5)

Two layers 2x(2-3x(3-5)

three layers 3x(2-3x3-5)

According to single

pack size

Design speed

25 packs/minute

Stable speed

≤20 packs/minute

Relate to product size

Bag install mode

Dual bag racks

Bag rack storage Qty

≤600 pcs prebags

Single packed

tissue range(mm)

L120-210 / W90-110/H60-100

Machine weight (KG)

6500

Bag type

CPP、PE

Thickness:0.05mm

Compressed air(MPA)

Press 0.6mpa flow 30Lmin

Power supply

380V/50HZ

Machine movement

control mode

16 shafts servo

positioning control

Servo control

Machine main

transmission mode

Servo motors drive,belts transmission

Machine color and craft

Deep grey.static spray plaint craft

Bag type

Same to manually packing

Air hole≤2.5mm

Gusset forming mode

Vacuum mold forming

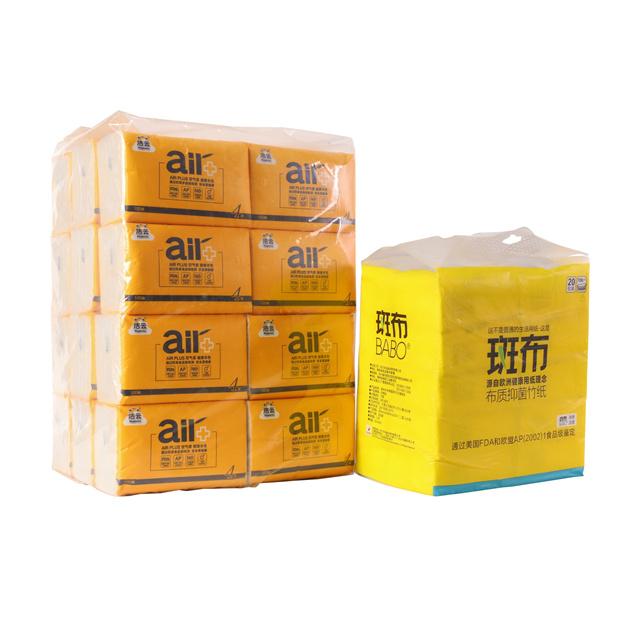

TP-B35TE series automatic tissue paper bundle packing machine is suitable for auto bundle packing single soft packed facial tissue, hand towel paper napkin.

1-8-napkin-bundler_06b TP-B35TE.jpg

Tissue Paper


The tissue paper making machine has become an essential part of modern society. With the growing demand for hygiene and convenience, the use of tissue paper has increased exponentially. Tissue paper making machines are designed to produce high-quality tissue paper for various purposes, such as facial tissue, toilet paper, and napkins.

The History of Tissue Paper Making Machine

The history of tissue paper dates back to the 6th century in China, where it was first produced using mulberry bark. It wasn't until the 19th century that tissue paper became widely available in Europe and North America. The first tissue paper making machine was invented by the Fourdrinier brothers in England in the early 1800s. Since then, tissue paper making machines have undergone many advancements, improving its efficiency and output.

The Working Principle of Tissue Paper Making Machine

The tissue paper making machine works by converting a pulp mixture into a long sheet of tissue paper. First, wood pulp or recycled paper is mixed with water to create a pulp mixture. The pulp mixture is then fed into the machine, which spreads it evenly across a wire mesh screen. The excess water is drained off, and the remaining pulp is pressed and dried to create the final product.

The Types of Tissue Paper Making Machines

There are two types of tissue paper making machines: single ply and double ply. Single ply machines produce one layer of tissue paper, while double ply machines can produce two layers simultaneously. Single ply machines are more common and produce tissue paper that is used in napkins, facial tissue, and toilet paper. Double ply machines produce thicker tissue paper that is used in industrial applications, such as paper towels and wipes.

In conclusion, the tissue paper making machine plays an important role in meeting the ever-growing demand for tissue paper products. With new innovations and advancements in technology, tissue paper making machines will continue to improve in efficiency and output. It is essential to invest in the latest and most advanced tissue paper making machines to continue producing high-quality tissue paper products that meet the demands of modern society.

Equipped with functions of waste bag free stop automatic rejection, air source management, falut alarm and display, servo overload protection.

B35TE 3.jpg


Automatic Facial Tissue Paper Making Machine Bundle PackerMain Parts

1. Hook piece

The hook piece is a critical component that helps to hold the filled diaper bags in place as they move through the packaging process. The hook piece is typically mounted on the bed plate of the machine and is designed to engage with the edges of the diaper bags, ensuring that they remain in the correct position as they are sealed and cut.

2. Conveyor Timing Belts

The Belt is designed with specific dimensions and specifications that are tailored to the requirements of Kitchen paper roll packing machine.The belt is also designed with specific grooves and ribs that help to improve its grip on the rollers and ensure smooth and consistent movement.

3. Output part

Output of the finished product.
Related Cases Your Professional Automatic Facial Tissue Paper Making Machine Bundle Packer Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.
